Relay, compressor, air suspension K126 for BMW 5 Series E61 530xi (2007)

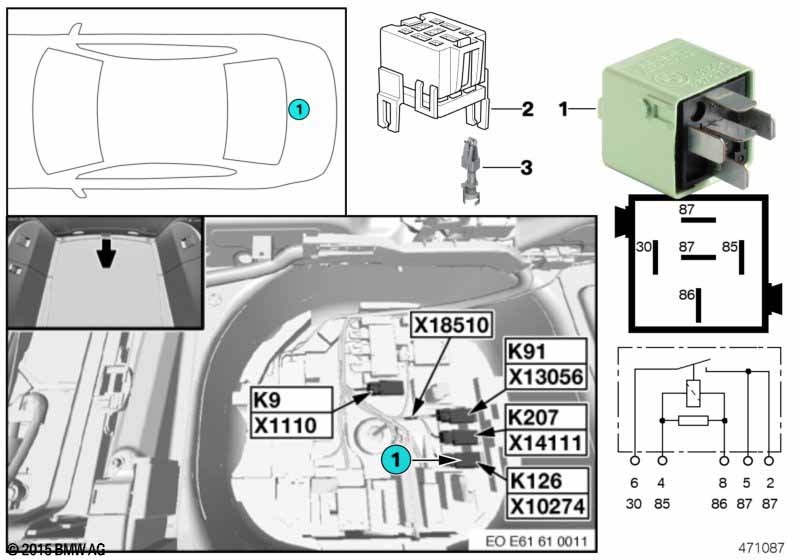

This Relay, compressor, air suspension K126 technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Relay holder, black white | 1 | 61131389111 | $5.43 | Shop at ECS Tuning | |||||
| 03 | Double flat spring contact with cable | 6,0 MM² | X | 61130007271 | $6.97 | Shop at ECS Tuning | ||||
| 03 | Double flat spring contact with cable | 1,0 MM² | X | 61130007437 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Double flat spring contact with cable | 2,5 MM² | X | 61130007438 | $2.75 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 530xi Relay, compressor, air suspension K126?
- This technical diagram illustrates the Relay, compressor, air suspension K126 within the Vehicle electrical system group for the 5 Series E61 530xi produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Relay, make contact, white green (Part #61368373700).
- Which models use the hardware listed in this Relay, compressor, air suspension K126?
- The hardware and components featured in the Relay, compressor, air suspension K126 are specific to the 5 Series E61 530xi produced during 2007. These technical specifications ensure that parts like the Relay, make contact, white green (61368373700) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay, compressor, air suspension K126 assembly?
- Each item in the Relay, compressor, air suspension K126 corresponds to the numbered list below the illustration. For the 5 Series E61 530xi, you can identify the Relay, make contact, white green by locating its position on the schematic, which then links to the official BMW part number 61368373700 for the Vehicle electrical system section.
