Additional battery holder for BMW 7 Series F02 LCI 760Li (2015)

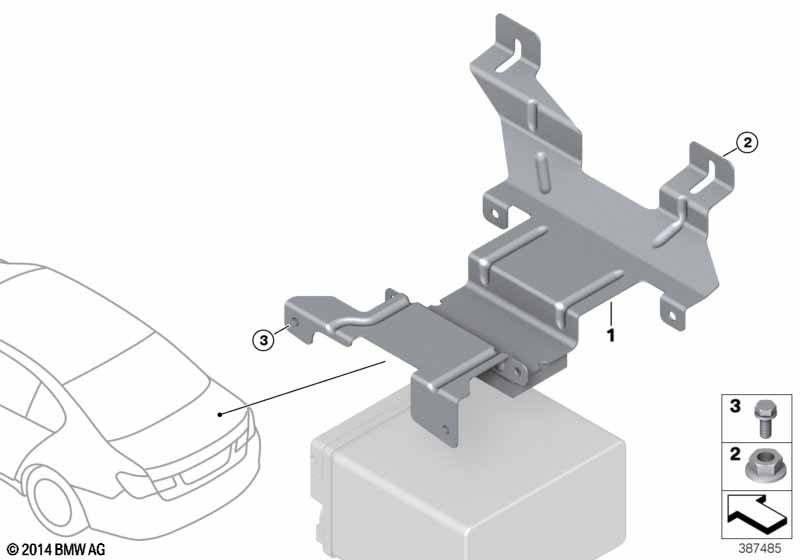

This Additional battery holder technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Additional battery holder | 1 | 61217622127 | Shop at ECS Tuning | ||||||
| 02 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 760Li Additional battery holder?
- This technical diagram illustrates the Additional battery holder within the Vehicle electrical system group for the 7 Series F02 LCI 760Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Additional battery holder (Part #61217622127).
- Which models use the hardware listed in this Additional battery holder?
- The hardware and components featured in the Additional battery holder are specific to the 7 Series F02 LCI 760Li produced during 2015. These technical specifications ensure that parts like the Additional battery holder (61217622127) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional battery holder assembly?
- Each item in the Additional battery holder corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 760Li, you can identify the Additional battery holder by locating its position on the schematic, which then links to the official BMW part number 61217622127 for the Vehicle electrical system section.
