Relay for heater blower K4 for BMW 7 Series E38 728i (2001)

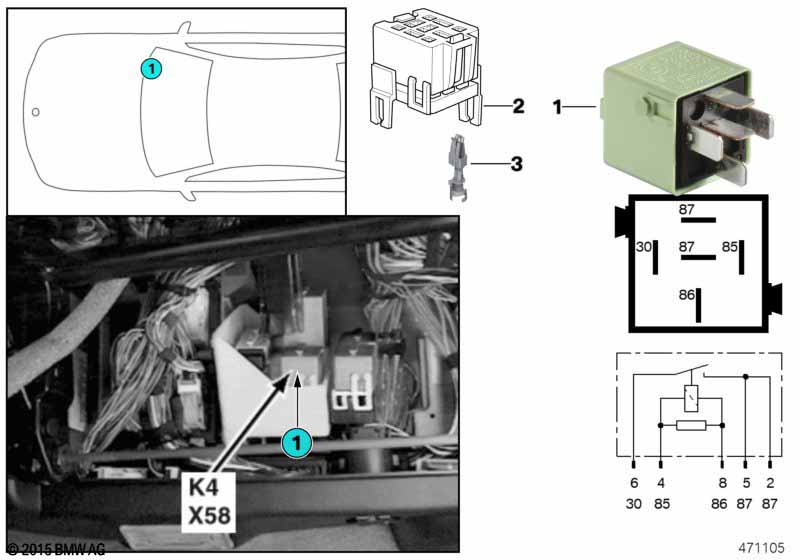

This Relay for heater blower K4 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Relay holder, black white | 1 | 61131389111 | $5.43 | Shop at ECS Tuning | |||||
| 03 | Double flat spring contact with cable | 6,0 MM² | X | 61130007271 | $6.97 | Shop at ECS Tuning | ||||
| 03 | Double flat spring contact with cable | 1,0 MM² | X | 61130007437 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Double flat spring contact with cable | 2,5 MM² | X | 61130007438 | $2.75 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 728i Relay for heater blower K4?
- This technical diagram illustrates the Relay for heater blower K4 within the Vehicle electrical system group for the 7 Series E38 728i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Relay, make contact, white green (Part #61368373700).
- Which models use the hardware listed in this Relay for heater blower K4?
- The hardware and components featured in the Relay for heater blower K4 are specific to the 7 Series E38 728i produced during 2001. These technical specifications ensure that parts like the Relay, make contact, white green (61368373700) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay for heater blower K4 assembly?
- Each item in the Relay for heater blower K4 corresponds to the numbered list below the illustration. For the 7 Series E38 728i, you can identify the Relay, make contact, white green by locating its position on the schematic, which then links to the official BMW part number 61368373700 for the Vehicle electrical system section.
