Relay, auxiliary fan, stage 2 K22 for BMW 7 Series E38 740d (2001)

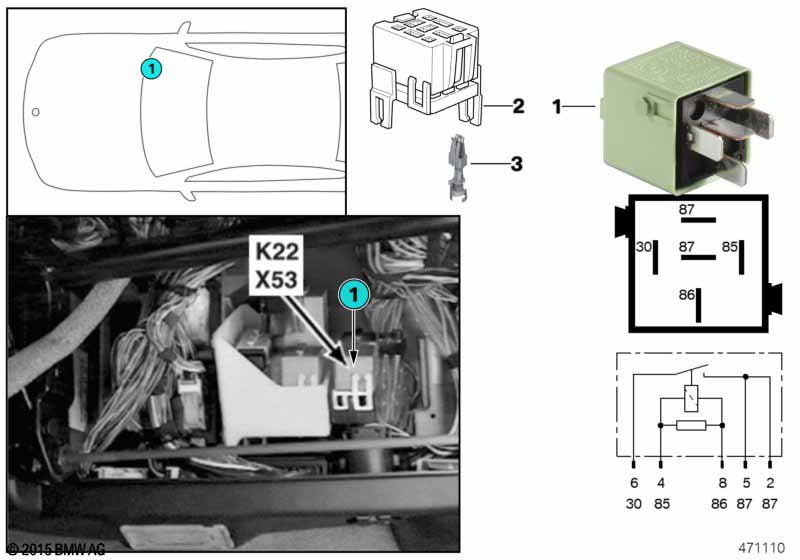

This Relay, auxiliary fan, stage 2 K22 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Relay holder, black white | 1 | 61131389111 | $5.43 | Shop at ECS Tuning | |||||
| 03 | Double flat spring contact with cable | 6,0 MM² | X | 61130007271 | $6.97 | Shop at ECS Tuning | ||||
| 03 | Double flat spring contact with cable | 1,0 MM² | X | 61130007437 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Double flat spring contact with cable | 2,5 MM² | X | 61130007438 | $2.75 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning | |||||
