Secondary air injection pump relay K2 for BMW 7 Series F02 LCI 730Li (2015)

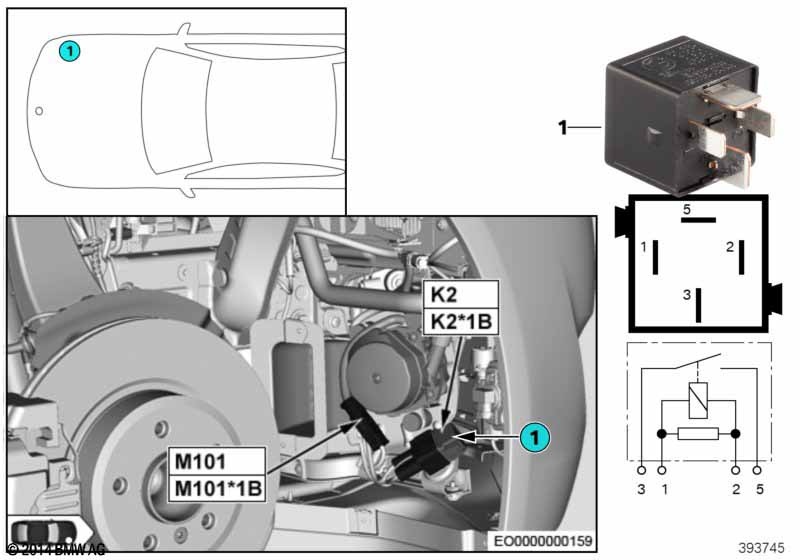

This Secondary air injection pump relay K2 technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Relay, make contact, black | LVA | 1 | 61366901469 | $13.96 | +core | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 730Li Secondary air injection pump relay K2?
- This technical diagram illustrates the Secondary air injection pump relay K2 within the Vehicle electrical system group for the 7 Series F02 LCI 730Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Relay, make contact, black (Part #61366901469).
- Which models use the hardware listed in this Secondary air injection pump relay K2?
- The hardware and components featured in the Secondary air injection pump relay K2 are specific to the 7 Series F02 LCI 730Li produced during 2015. These technical specifications ensure that parts like the Relay, make contact, black (61366901469) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Secondary air injection pump relay K2 assembly?
- Each item in the Secondary air injection pump relay K2 corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 730Li, you can identify the Relay, make contact, black by locating its position on the schematic, which then links to the official BMW part number 61366901469 for the Vehicle electrical system section.
