Horn for BMW 2 Series F45 Active Tourer LCI 220i (2018)

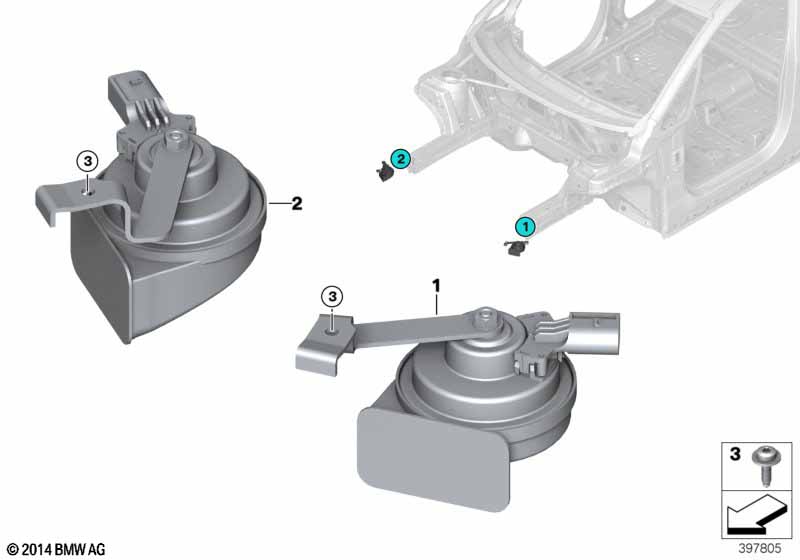

This Horn technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Gulf version and National version China and Hot-climate version and Country-specific equipment Russia 10323 |
L822A=No L8AAA=No S823A=No S8LRA=No |
|||||||||
| 01 | Horn, low pitch | 1 | 61337492891 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Gulf version and National version China and Hot-climate version and Country-specific equipment Russia 10323 |
L807A=No L822A=Yes L8AAA=Yes S823A=Yes S8LRA=Yes |
|||||||||
| 01 | Air horn, low-frequency, electronic | 1 | 10/2022 | 61337492887 | Shop at ECS Tuning | |||||
| 01 | Fanfare horn low tone electronic | 1 | 61335A70C83 | Shop at ECS Tuning | ||||||
| For vehicles with Gulf version and National version China and Hot-climate version and Country-specific equipment Russia 10323 |
L822A=No L8AAA=No S823A=No S8LRA=No |
|||||||||
| 02 | Horn, high pitch | 1 | 61337492885 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Gulf version and National version China and Hot-climate version and Country-specific equipment Russia 10323 |
L807A=No L822A=Yes L8AAA=Yes S823A=Yes S8LRA=Yes |
|||||||||
| 02 | Air horn, high-frequency, electronic | 1 | 10/2022 | 61337492889 | Shop at ECS Tuning | |||||
| 02 | Fanfare horn high tone electronic | 1 | 61335A70C84 | Shop at ECS Tuning | ||||||
| 03 | Countersunk screw | M6X20-PCU2-10.9 | 2 | 07119908698 | Shop at ECS Tuning | |||||
