Switch unit, center console for BMW MINI Clubman F54 One (2019)

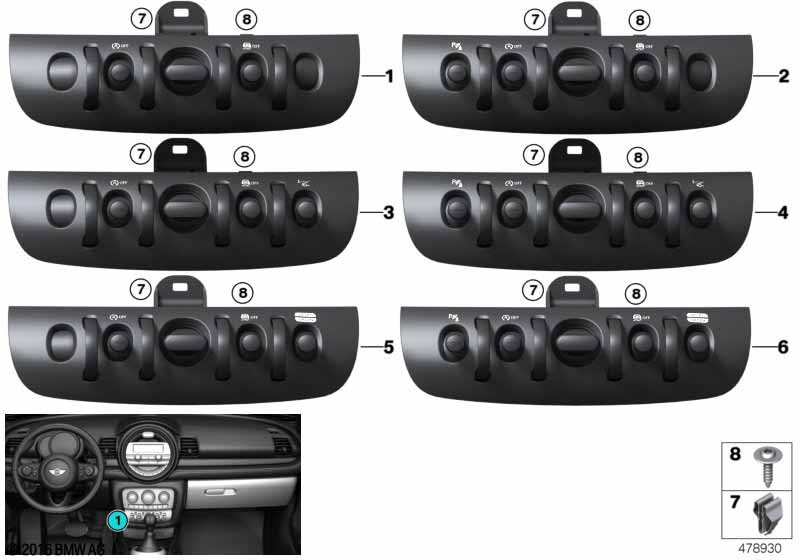

This Switch unit, center console technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with MINI Driving Modes and Park Assistent |
S4VAA=No S5DPA=No |
|||||||||
| 01 | Switch unit, center console | 1 | 07/2017 | 61319319015 | Shop at ECS Tuning | |||||
| For vehicles with MINI Driving Modes and Park Assistent |
S4VAA=No S5DPA=Yes |
|||||||||
| 02 | Switch unit, center console | 1 | 07/2017 | 61319319016 | Shop at ECS Tuning | |||||
| For vehicles with MINI Driving Modes and Park Assistent |
S4VAA=Yes S5DPA=No |
|||||||||
| 05 | Switch unit, center console | 1 | 07/2017 | 61316838208 | Shop at ECS Tuning | |||||
| For vehicles with MINI Driving Modes and Park Assistent |
S4VAA=Yes S5DPA=Yes |
|||||||||
| 06 | Switch unit, center console | 1 | 07/2017 | 61316838209 | Shop at ECS Tuning | |||||
| 07 | Clamp | 3 | 07147321144 | Shop at ECS Tuning | ||||||
| 08 | Fillister head screw | DELTA PT4X16 | 1 | 07149197038 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 One Switch unit, center console?
- This technical diagram illustrates the Switch unit, center console within the Vehicle electrical system group for the MINI Clubman F54 One produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Switch unit, center console (Part #61319319015).
- Which models use the hardware listed in this Switch unit, center console?
- The hardware and components featured in the Switch unit, center console are specific to the MINI Clubman F54 One produced during 2019. These technical specifications ensure that parts like the Switch unit, center console (61319319015) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch unit, center console assembly?
- Each item in the Switch unit, center console corresponds to the numbered list below the illustration. For the MINI Clubman F54 One, you can identify the Switch unit, center console by locating its position on the schematic, which then links to the official BMW part number 61319319015 for the Vehicle electrical system section.
