Relay for thermo switch for BMW 5 Series E39 523i (2000)

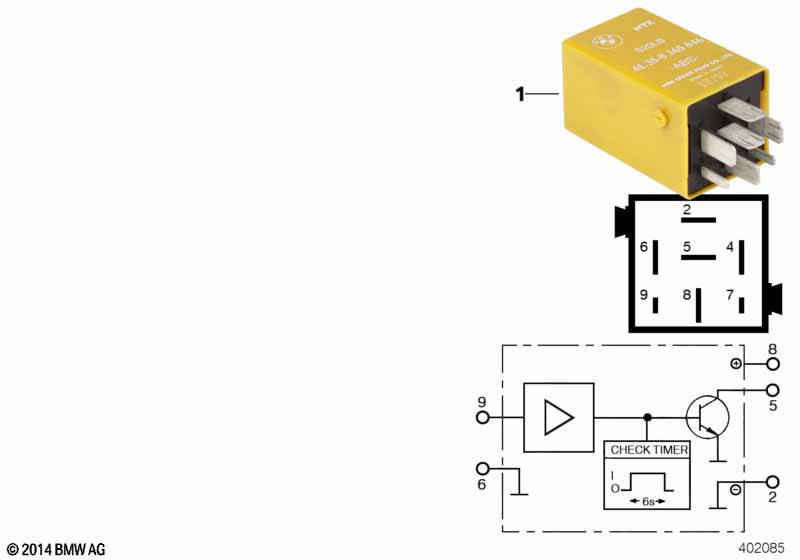

This Relay for thermo switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Thermo switchgear | 1 | 61358365846 | $460.91 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Relay for thermo switch?
- This technical diagram illustrates the Relay for thermo switch within the Vehicle electrical system group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Thermo switchgear (Part #61358365846).
- Which models use the hardware listed in this Relay for thermo switch?
- The hardware and components featured in the Relay for thermo switch are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Thermo switchgear (61358365846) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay for thermo switch assembly?
- Each item in the Relay for thermo switch corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Thermo switchgear by locating its position on the schematic, which then links to the official BMW part number 61358365846 for the Vehicle electrical system section.
