Power distribution box for BMW 2 Series F45 Active Tourer LCI 220d (2021)

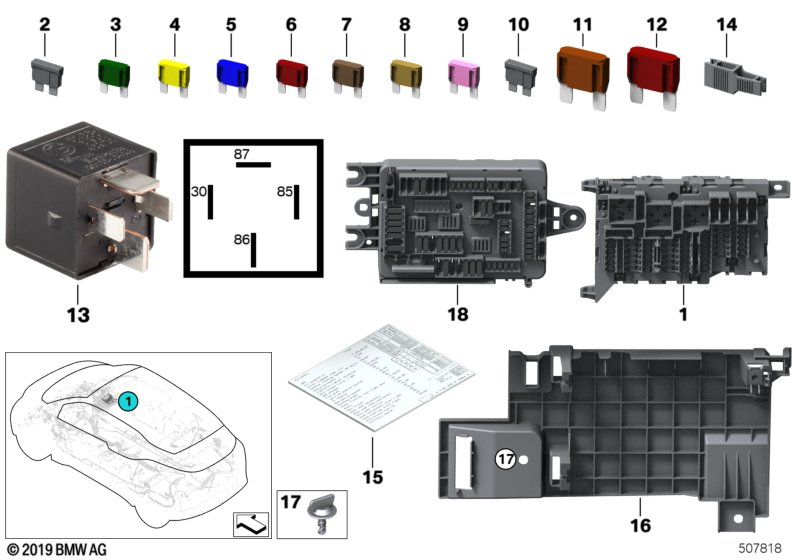

This Power distribution box technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power distribution box | BASIS | 1 | 61149360501 | Shop at ECS Tuning | |||||
| 02 | Fuse | 10A | X | 61146953466 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fuse, Mini, green | 30A | X | 61139230533 | Shop at ECS Tuning | |||||
| 04 | Fuse Mini, yellow | 20A | X | 61136942071 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Fuse Maxi, yellow | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 05 | Fuse Mini, blue | 15A | X | 61136917404 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Fuse Mini, red | 10A | X | 61136917403 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Fuse Mini, brown | 7,5A | X | 61136917402 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Fuse Mini, yellow-brown | 5A | X | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| 09 | Fuse Mini, rosa | 4A | X | 61136917400 | $0.77 | Shop at ECS Tuning | ||||
| 10 | Fuse | 7,5A | X | 61131370987 | $0.75 | ENDED | Shop at ECS Tuning | |||
| 11 | Fuse Maxi, orange | 40A | X | 61138367132 | $1.83 | Shop at ECS Tuning | ||||
| 12 | Fuse Maxi, red | 50A | X | 61138367154 | $2.15 | Shop at ECS Tuning | ||||
| 13 | Relay, make contact, black | LVA | 1 | 61366901469 | $13.96 | +core | Shop at ECS Tuning | |||
| 14 | Fuse clip | 1 | 61146936578 | $1.10 | Shop at ECS Tuning | |||||
| 15 | Map, fuse grouping | 1 | 07/2016 | 71236822531 | Shop at ECS Tuning | |||||
| 16 | Bracket current distributor | LIFE | 1 | 61139265642 | Shop at ECS Tuning | |||||
| 17 | Quick-release screw | 2 | 61139343291 | Shop at ECS Tuning | ||||||
| 18 | Power distribution box, rear | 1 | 61149259466 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
