HSD wire for BMW MINI Cabrio F57 Cooper (2018)

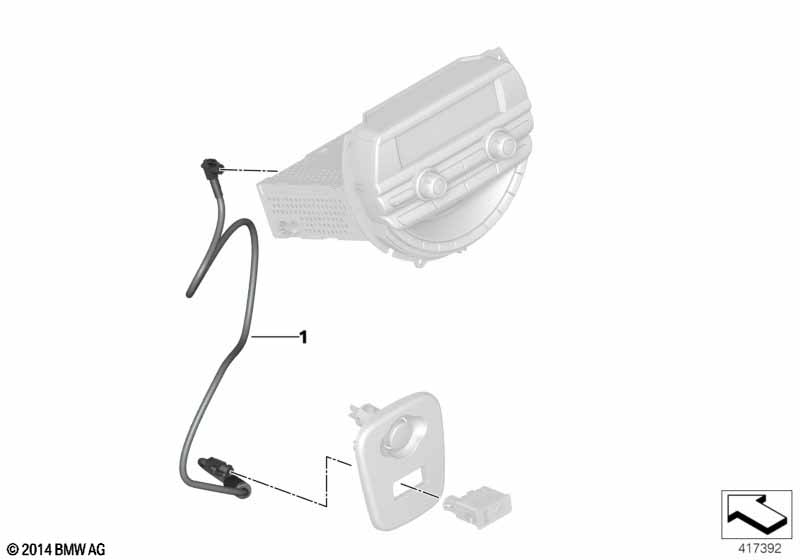

This HSD wire technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | HSD line HU - USB/AUX | 1 | 03/2018 | 61126835853 | Shop at ECS Tuning | |||||
| from head unit plug A42*11B to USB socket X438*2B |
||||||||||
| A42*15B Headunit - X29*3B USB/AUX Buchse | ||||||||||
| 01 | HSD line for head unit / base plate | 1 | 61119393419 | Shop at ECS Tuning | ||||||
| For vehicles with Wired and Navigation system Professional and MINI Head-Up display and Radio MINI Visual Boost and Extended mobile phone prep. w/Bluetooth and MINI navigation system |
P7L5A=Yes S609A=No S6ADA=Yes S6FPA=Yes S6NEA=Yes S6UMA=Yes |
|||||||||
| 01 | Retrofit cable for navigation system | 1 | 12/2014 | 61119389152 | Shop at ECS Tuning | |||||
| from head unit plug A42*11B to USB socket X438*2B |
||||||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 Cooper HSD wire?
- This technical diagram illustrates the HSD wire within the Vehicle electrical system group for the MINI Cabrio F57 Cooper produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the HSD line HU - USB/AUX (Part #61126835853).
- Which models use the hardware listed in this HSD wire?
- The hardware and components featured in the HSD wire are specific to the MINI Cabrio F57 Cooper produced during 2018. These technical specifications ensure that parts like the HSD line HU - USB/AUX (61126835853) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the HSD wire assembly?
- Each item in the HSD wire corresponds to the numbered list below the illustration. For the MINI Cabrio F57 Cooper, you can identify the HSD line HU - USB/AUX by locating its position on the schematic, which then links to the official BMW part number 61126835853 for the Vehicle electrical system section.
