B+ junction terminal for BMW 2 Series F45 Active Tourer LCI 220d (2021)

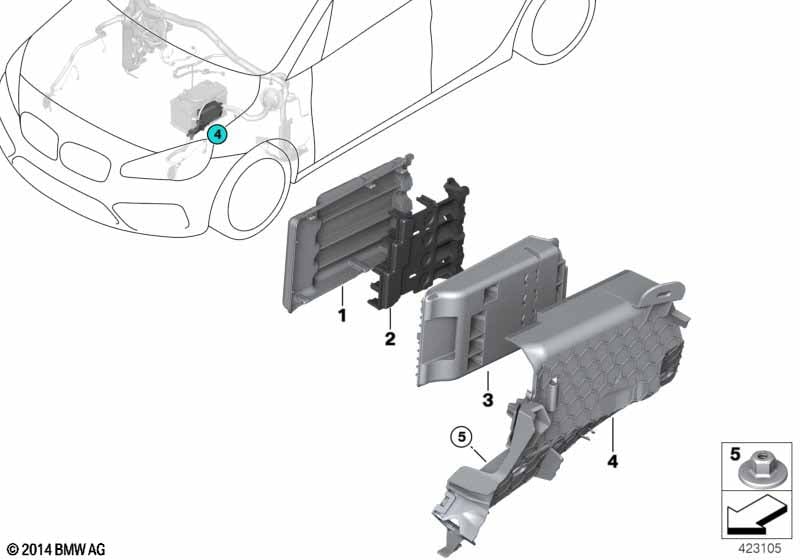

This B+ junction terminal technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | B+ power distribution box, cover | 1 | 61149321050 | Shop at ECS Tuning | ||||||
| 02 | B+ power distribution box, center part | 1 | 61149321051 | Shop at ECS Tuning | ||||||
| 03 | B+ junction terminal | 300-400 W | 1 | 61149321022 | Shop at ECS Tuning | |||||
| 03 | B+ junction terminal | 850 W | 1 | 61149321024 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable or Air conditioning for rear with cool box or Hot-climate version |
S235A=Yes S523A=Yes S823A=Yes |
|||||||||
| 03 | B+ junction terminal | 600 W | 1 | 61149321023 | Shop at ECS Tuning | |||||
| 04 | Bracket for B+ junction point | 1 | 61139332509 | Shop at ECS Tuning | ||||||
| 05 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
