ECU for Power Control Unit PCU for BMW 7 Series G12 740Li (2019)

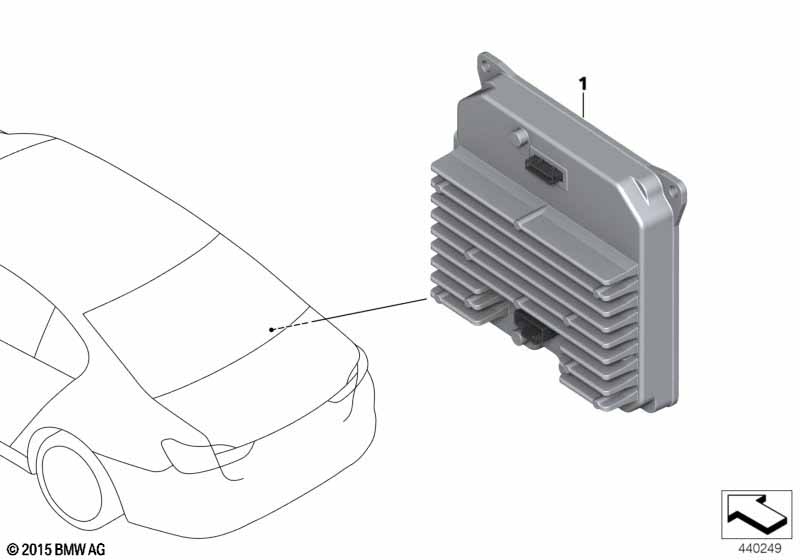

This ECU for Power Control Unit PCU technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.

ECU for Power Control Unit PCU
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 ECU for Power Control Unit PCU PCU 500W 1 07/2019 61428736485 ENDED Shop at ECS Tuning
01 ECU for Power Control Unit PCU PCU 500W 1 03/2022 61425A05A03 ENDED Shop at ECS Tuning
01 ECU for Power Control Unit PCU PCU 500W 1 61425B62A38 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
