Control unit f radio remote control for BMW 5 Series G30 530iX (2018)

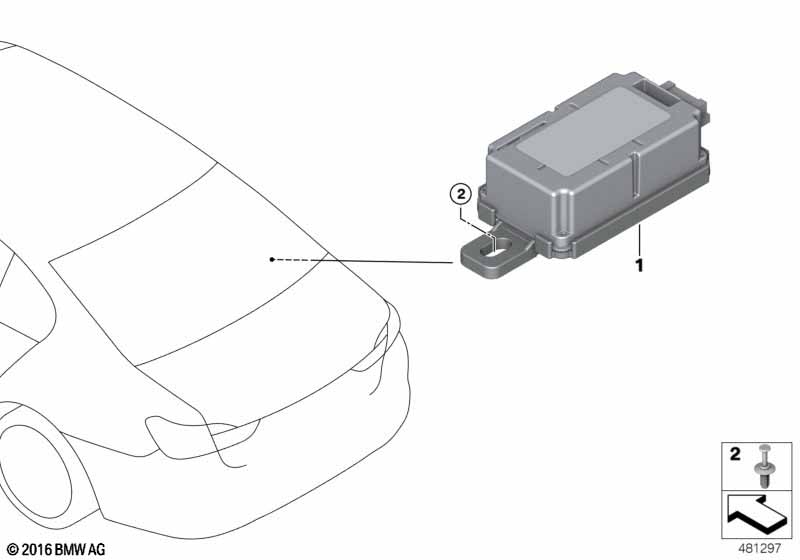

This Control unit f radio remote control technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Radio frequency 315 MHz |
S876A=No |
|||||||||
| 01 | Radio remote control receiver | 434 MHZ | 1 | 06/2021 | 61357928461 | ENDED | Shop at ECS Tuning | |||
| 01 | Receiver radio remote control | 434 MHZ | 1 | 61357928662 | Shop at ECS Tuning | |||||
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 01 | Radio remote control receiver | 315 MHZ | 1 | 03/2020 | 61359440541 | Shop at ECS Tuning | ||||
| 01 | Radio remote control receiver | 315 MHZ | 1 | 06/2021 | 61357928462 | Shop at ECS Tuning | ||||
| 01 | Radio remote control receiver | 315 MHZ | 1 | 61357928649 | Shop at ECS Tuning | |||||
| 02 | Expanding rivet | D = 6MM | 1 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 530iX Control unit f radio remote control?
- This technical diagram illustrates the Control unit f radio remote control within the Vehicle electrical system group for the 5 Series G30 530iX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Radio remote control receiver (Part #61357928461).
- Which models use the hardware listed in this Control unit f radio remote control?
- The hardware and components featured in the Control unit f radio remote control are specific to the 5 Series G30 530iX produced during 2018. These technical specifications ensure that parts like the Radio remote control receiver (61357928461) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit f radio remote control assembly?
- Each item in the Control unit f radio remote control corresponds to the numbered list below the illustration. For the 5 Series G30 530iX, you can identify the Radio remote control receiver by locating its position on the schematic, which then links to the official BMW part number 61357928461 for the Vehicle electrical system section.
