Battery charge module / BCU150 for BMW 3 Series G20 Sedan 330e (2020)

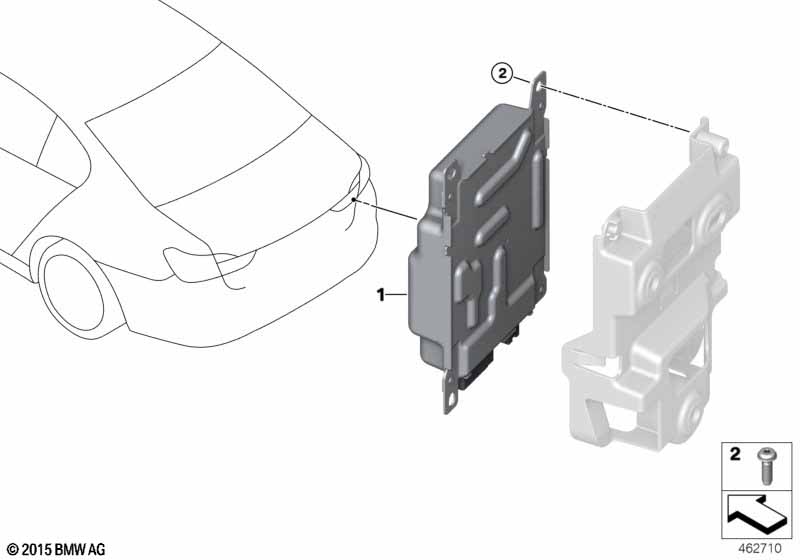

This Battery charge module / BCU150 technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery charge module | BCU 150P | 1 | 61428707828 | Shop at ECS Tuning | |||||
| 02 | Screw | 6X20 | 2 | 07129907489 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330e Battery charge module / BCU150?
- This technical diagram illustrates the Battery charge module / BCU150 within the Vehicle electrical system group for the 3 Series G20 Sedan 330e produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Battery charge module (Part #61428707828).
- Which models use the hardware listed in this Battery charge module / BCU150?
- The hardware and components featured in the Battery charge module / BCU150 are specific to the 3 Series G20 Sedan 330e produced during 2020. These technical specifications ensure that parts like the Battery charge module (61428707828) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery charge module / BCU150 assembly?
- Each item in the Battery charge module / BCU150 corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330e, you can identify the Battery charge module by locating its position on the schematic, which then links to the official BMW part number 61428707828 for the Vehicle electrical system section.
