Holder for Body Domain Controller BDC for BMW 5 Series G30 530e (2020)

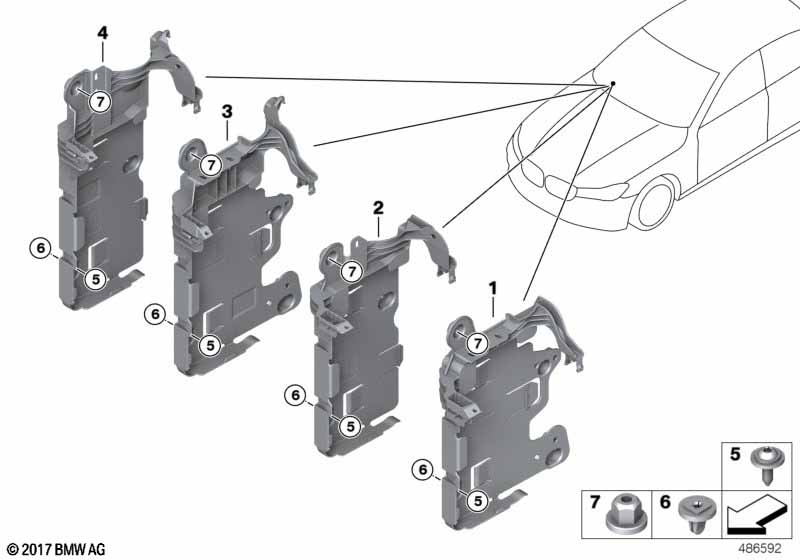

This Holder for Body Domain Controller BDC technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket BDC | 1 | 61359331163 | Shop at ECS Tuning | ||||||
| 05 | Sheet metal screw | 4,8X16 | 3 | 07119907237 | Shop at ECS Tuning | |||||
| 06 | Expanding nut | 7X7 MM | 3 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 530e Holder for Body Domain Controller BDC?
- This technical diagram illustrates the Holder for Body Domain Controller BDC within the Vehicle electrical system group for the 5 Series G30 530e produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Bracket BDC (Part #61359331163).
- Which models use the hardware listed in this Holder for Body Domain Controller BDC?
- The hardware and components featured in the Holder for Body Domain Controller BDC are specific to the 5 Series G30 530e produced during 2020. These technical specifications ensure that parts like the Bracket BDC (61359331163) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Holder for Body Domain Controller BDC assembly?
- Each item in the Holder for Body Domain Controller BDC corresponds to the numbered list below the illustration. For the 5 Series G30 530e, you can identify the Bracket BDC by locating its position on the schematic, which then links to the official BMW part number 61359331163 for the Vehicle electrical system section.
