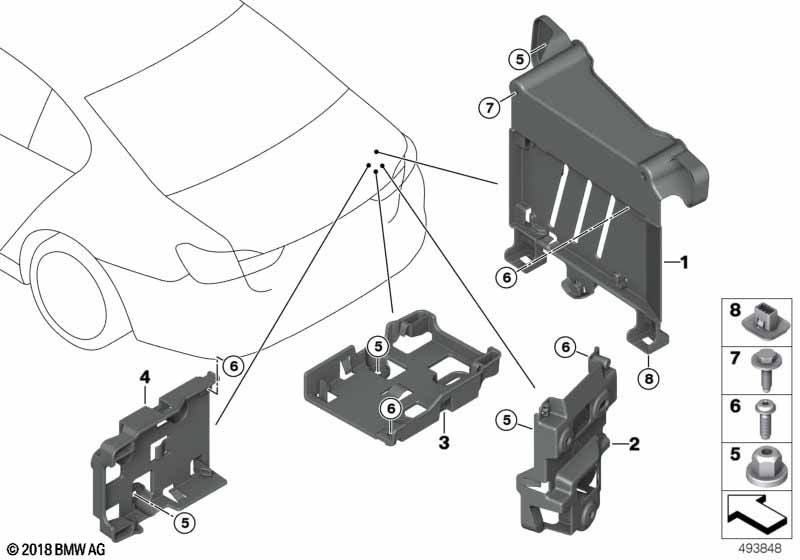

Mount for BCU battery charge module for BMW 7 Series G12 740LiX (2018)
This Mount for BCU battery charge module technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Rear compartment telephone |
S6NBA=No |
|||||||||
| 01 | Mount for BCU battery charge module | 1 | 61429330191 | Shop at ECS Tuning | ||||||
| For vehicles with Rear compartment telephone |
S6NBA=Yes |
|||||||||
| 02 | Mount for BCU battery charge module | 1 | 61428796961 | Shop at ECS Tuning | ||||||
| 05 | Plastic nut for coarse threaded pin | M6 | 3 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Screw | 6X20 | 1 | 07129907489 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X20 | 2 | 07119908004 | Shop at ECS Tuning | |||||
| 08 | Clip | 2 | 65159324856 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740LiX Mount for BCU battery charge module?
- This technical diagram illustrates the Mount for BCU battery charge module within the Vehicle electrical system group for the 7 Series G12 740LiX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Mount for BCU battery charge module (Part #61429330191).
- Which models use the hardware listed in this Mount for BCU battery charge module?
- The hardware and components featured in the Mount for BCU battery charge module are specific to the 7 Series G12 740LiX produced during 2018. These technical specifications ensure that parts like the Mount for BCU battery charge module (61429330191) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mount for BCU battery charge module assembly?
- Each item in the Mount for BCU battery charge module corresponds to the numbered list below the illustration. For the 7 Series G12 740LiX, you can identify the Mount for BCU battery charge module by locating its position on the schematic, which then links to the official BMW part number 61429330191 for the Vehicle electrical system section.
