Repair wiring sets for BMW MINI F56 JCW (2020)

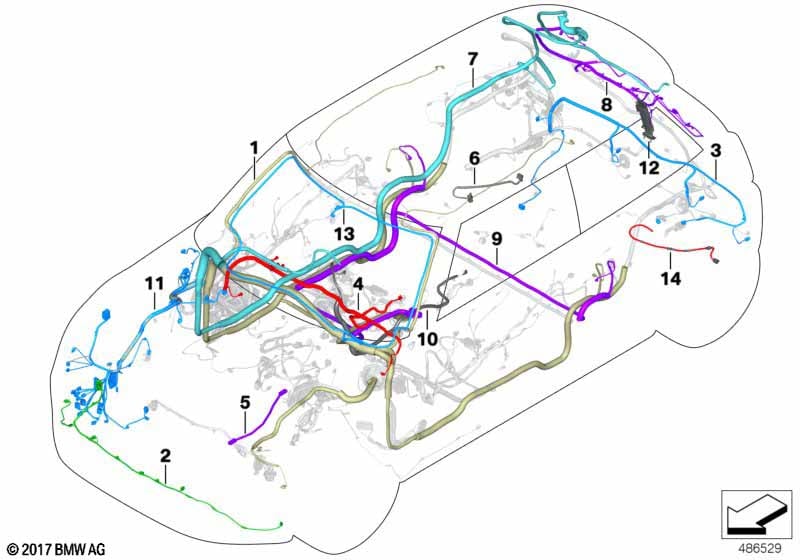

This Repair wiring sets technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair wiring for airbag system | 1 | 61129364712 | Shop at ECS Tuning | ||||||
| 02 | Wiring set PDC, front | 1 | 07/2018 | 61128715573 | Shop at ECS Tuning | |||||
| 03 | Retrofit cable set, PDC rear | 1 | 61122357882 | Shop at ECS Tuning | ||||||
| 04 | Rep.cable f knee prot. and control unit | 1 | 61129366595 | Shop at ECS Tuning | ||||||
| From Z3*3B positive battery terminal of battery power distribution box to A258*1B Body Domain Controller |
||||||||||
| 04 | Rep. wire for B+ | 1 | 61129364727 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Rep.cable fuel tank | 1 | 61126806486 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan |
L807A=No |
|||||||||
| 06 | Rep.cable fuel tank | 1 | 61126806485 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 09 | Repair cable | ACSM | 1 | 61116811631 | Shop at ECS Tuning | |||||
| 13 | Rep. module, camera-based driver support | 1 | 61129364721 | Shop at ECS Tuning | ||||||
| 14 | Rep. cable, electric parking brake | 2 | 61129317092 | Shop at ECS Tuning | ||||||
