Switch for rear lid actuation for BMW 7 Series G12 LCI 730LdX (2022)

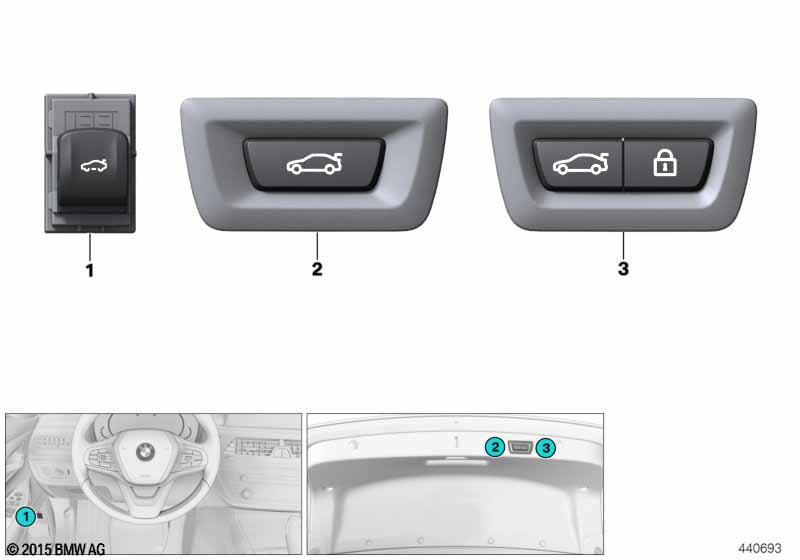

This Switch for rear lid actuation technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch trunk lid | 1 | 61319299459 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 02 | Switch trunk lid | 1 | 07/2022 | 61319275119 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trunk lid lock switch | HKL ORANGE | 1 | 61315A64C24 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 03 | Switch for trunk-Centerlock | 1 | 07/2022 | 61319275121 | ENDED | Shop at ECS Tuning | ||||
| 03 | Trunk lid lock switch center lock | HKL CL ORANGE | 1 | 61315A64C25 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
