Switch, steering wheel, base for BMW 7 Series G12 730LdX (2018)

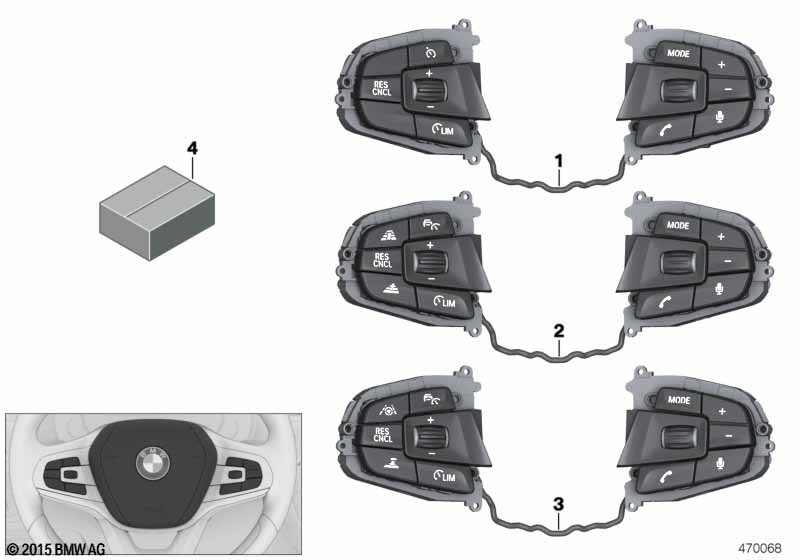

This Switch, steering wheel, base technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports leather steering wheel and Leather steering wheel, wood appliques |
S255A=No S2XLA=No |
||||||||
| For vehicles with Driving Assistant Plus and Active cruise control+Stop&Go function |
S5ATA=No S5DFA=No |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 61319388730 | Shop at ECS Tuning | ||||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 02 | Switch, multifunct. steering wheel | 1 | 61319388732 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus |
S5ATA=Yes |
|||||||||
| 03 | Switch, multifunct. steering wheel | 1 | 61319388734 | Shop at ECS Tuning | ||||||
| 04 | Set of screws | 1 | 32306884696 | Shop at ECS Tuning | ||||||
