Cable covering/control unit support for BMW 3 Series E36 320i (1995)

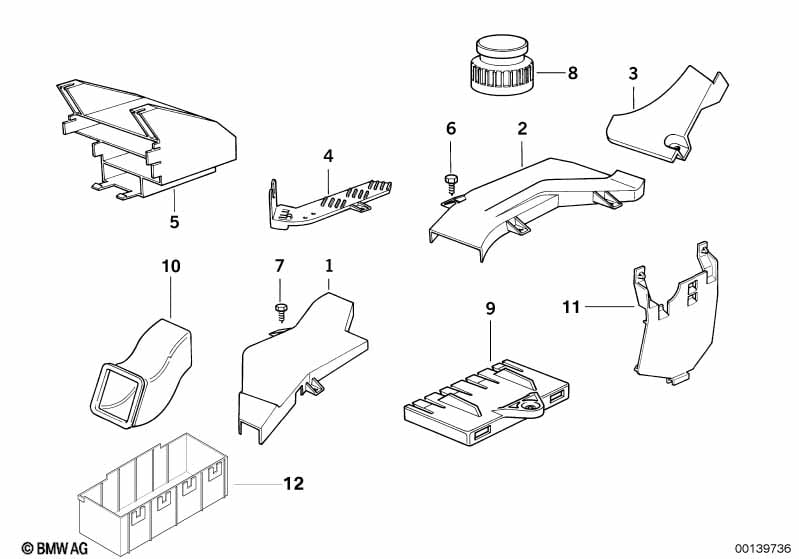

This Cable covering/control unit support technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front right cable covering | 1 | 61138357810 | $7.58 | Shop at ECS Tuning | |||||
| 01 | Front left cable covering | 1 | 61138357811 | $7.58 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rear left cable covering | 1 | 61138360263 | $6.67 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rear right cable covering | 1 | 61138360264 | $5.80 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket plug terminal | 1 | 61131387189 | $3.02 | Shop at ECS Tuning | |||||
| 05 | Control unit support | 1 | 61131387775 | $7.43 | Shop at ECS Tuning | |||||
| 06 | Hex head screw | ST4,8X13-C-U1-Z | 3 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST4,8X22-Z1 | 2 | 07119916948 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Covering cap | 25-POLIG | 1 | 61131393717 | $14.73 | Shop at ECS Tuning | ||||
| 09 | Connector cover | X | 61131393791 | $2.07 | Shop at ECS Tuning | |||||
| 10 | Rear left cable covering | 1 | 61138365955 | $11.72 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rear right cable covering | 1 | 61138365956 | $11.72 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
