Various wiring connectors for BMW 3 Series E36 318i (1996)

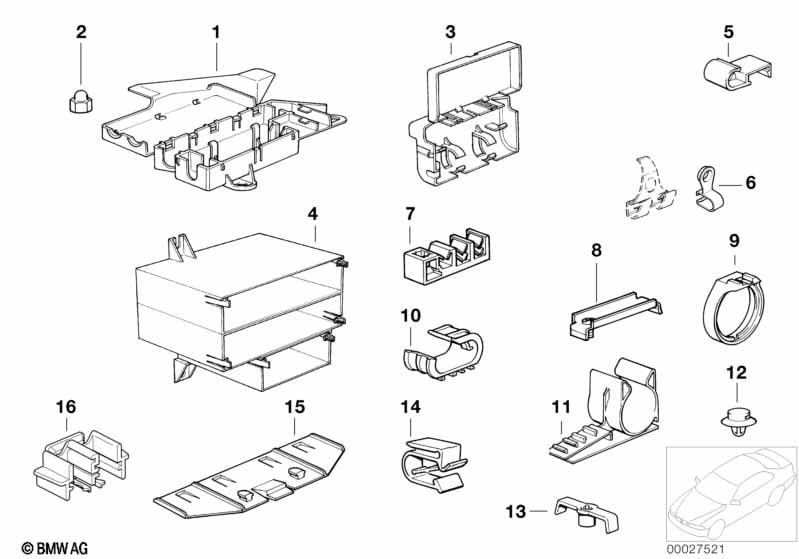

This Various wiring connectors technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket f.left wheel hous.plug connect. | 1 | 61131393782 | $2.78 | Shop at ECS Tuning | |||||
| 01 | Bracket f.right wheel hous.plug connect. | 1 | 61131393789 | $2.78 | Shop at ECS Tuning | |||||
| 02 | Plastic nut for coarse threaded pin | M6 | X | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 02 | Cap nut | M5 | X | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| Only use holder for plug connection rear axle in conjunction with lid part number 2451387. |
||||||||||
| 03 | Bracket f.left rear axle plug connect. | 1 | 61132451610 | ENDED | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| 03 | Bracket f.right rear axle plug connect. | 1 | 61132451611 | ENDED | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cover holder | 1 | 61132451387 | Shop at ECS Tuning | ||||||
| 04 | Bracket for module | 1 | 61138353298 | ENDED | Shop at ECS Tuning | |||||
| 05 | Bracke trunk lid-hinge | 1 | 61138353246 | $1.28 | Shop at ECS Tuning | |||||
| 06 | Bracke trunk lid-hinge | 1 | 61138353245 | $1.28 | Shop at ECS Tuning | |||||
| 07 | Cable clip | 2 | 61138353228 | $0.63 | Shop at ECS Tuning | |||||
| 08 | Cable holder | 2 | 61138353432 | $0.72 | ENDED | Shop at ECS Tuning | ||||
| 09 | Plug-in connection bracket | 1 | 61131387161 | $1.63 | Shop at ECS Tuning | |||||
| 10 | Plug-in connection bracket | 1 | 61131393709 | $0.87 | Shop at ECS Tuning | |||||
| 11 | Plug-in connection bracket | 1 | 61131387125 | $1.97 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cable strap bracket | 2 | 61131390946 | $0.48 | Shop at ECS Tuning | |||||
| 13 | Cable holder | 1 | 61138353438 | $0.72 | Shop at ECS Tuning | |||||
| 14 | Cable holder | D=5MM | 4 | 61131379079 | $0.48 | Shop at ECS Tuning | ||||
| 15 | Relay bracket | 1 | 61138353299 | $2.33 | Shop at ECS Tuning | |||||
| 16 | Plug-in connection bracket | 1 | 61131393735 | $1.63 | Shop at ECS Tuning | |||||
