Steering column switch for BMW 3 Series E36 323i (1999)

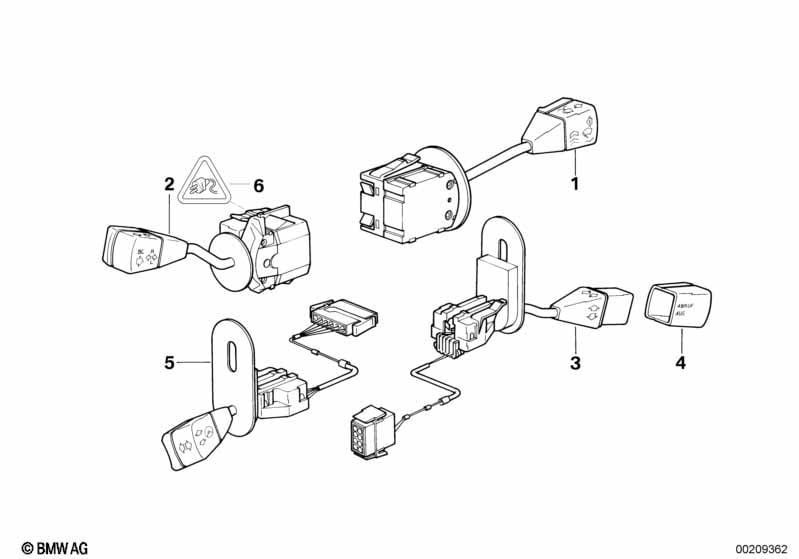

This Steering column switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper switch | 1 | 61318360915 | $97.81 | Shop at ECS Tuning | |||||
| For vehicles with Rear window wiper |
=Yes |
|||||||||
| 01 | Wiper switch | 1 | 61318360919 | $97.81 | Shop at ECS Tuning | |||||
| 02 | Switch turn signal,dip-dim control | 1 | 01/1995 | 61318360899 | $137.88 | Shop at ECS Tuning | ||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 02 | Switch turn signal,dip-dim control | 1 | 01/1995 | 61318360907 | $137.88 | Shop at ECS Tuning | ||||
| For vehicles with On-board computer |
=Yes |
|||||||||
| 02 | Switch turn signal,dip-dim control | 1 | 01/1995 | 61318360901 | $102.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag and On-board computer |
=Yes =Yes |
|||||||||
| 02 | Switch turn signal,dip-dim control | 1 | 01/1995 | 61318360909 | $137.88 | ENDED | Shop at ECS Tuning | |||
| 03 | Cruise control switch | 1 | 01/1995 | 61318360926 | $97.81 | Shop at ECS Tuning | ||||
| 04 | Button for cruise control switch | (ENGLISH) | 1 | 61311390968 | $6.22 | Shop at ECS Tuning | ||||
| 04 | Button for cruise control switch | (FRANCAISE) | 1 | 61311390969 | $4.63 | Shop at ECS Tuning | ||||
| 04 | Button for cruise control switch | (ITALIANO) | 1 | 61311390970 | $5.25 | Shop at ECS Tuning | ||||
| 04 | Button for cruise control switch | (ESPANOL) | 1 | 61311390971 | $5.47 | Shop at ECS Tuning | ||||
| 06 | Plug housing, white | 12 POL. | 1 | 61131378137 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular contact 2.5 | 1,0-2,5MM² | 1 | 61131376193 | $1.12 | Shop at ECS Tuning | ||||
| -- | Circular contact 2.5 | 2,5-4,0MM² AG | 1 | 61139344421 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
