Single components for fuse box for BMW 3 Series E36 320i (1995)

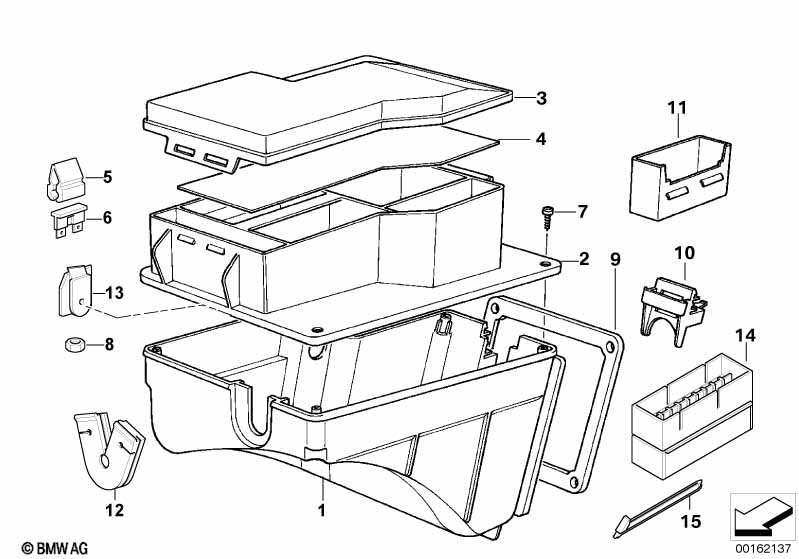

This Single components for fuse box technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring box | 1 | 61131387614 | $28.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fuse box | 1 | 61131387590 | $18.50 | Shop at ECS Tuning | |||||
| 03 | Fuse box cover | 1 | 61131387613 | $14.38 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH STICK-ON LABEL IN FUSE BOX |
||||||||||
| 04 | Stick-on label in fuse box | DEUTSCH | 1 | 09/1993 | 09/1995 | 61138367924 | Shop at ECS Tuning | |||
| 04 | Stick-on label in fuse box | ENGLISH | 1 | 09/1993 | 09/1995 | 61138367925 | $1.83 | Shop at ECS Tuning | ||
| 04 | Stick-on label in fuse box | FRANCAISE | 1 | 09/1993 | 09/1995 | 61138367926 | $1.67 | Shop at ECS Tuning | ||
| 04 | Stick-on label in fuse box | ITALIANO | 1 | 09/1993 | 09/1995 | 61138367927 | Shop at ECS Tuning | |||
| 04 | Stick-on label in fuse box | ESPANOL | 1 | 09/1993 | 09/1995 | 61138367928 | Shop at ECS Tuning | |||
| 05 | Fuse clip | X | 61131379583 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fuse | 5A | X | 10/2012 | 61131386626 | $0.75 | ENDED | Shop at ECS Tuning | ||
| 06 | Fuse light brown | 5A | X | 61131372523 | Shop at ECS Tuning | |||||
| 06 | Fuse brown | 7,5A | X | 61131372524 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Fuse red | 10A | X | 61131372525 | Shop at ECS Tuning | |||||
| 06 | Fuse blue | 15A | X | 61131372526 | Shop at ECS Tuning | |||||
| 06 | Fuse Maxi, yellow | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 06 | Fuse white | 25A | X | 61131372528 | Shop at ECS Tuning | |||||
| 06 | Fuse green | 30A | X | 61131372529 | Shop at ECS Tuning | |||||
| 06 | Fuse | 25A | X | 61131372627 | $0.75 | ENDED | Shop at ECS Tuning | |||
| 06 | Fuse | 2A | X | 61131386849 | $0.75 | Shop at ECS Tuning | ||||
| 06 | Fuse | 3A | X | 61131394461 | $0.75 | Shop at ECS Tuning | ||||
| 06 | Fuse orange | 40A | X | 61138364543 | $0.81 | Shop at ECS Tuning | ||||
| 06 | Fuse Maxi, orange | 40A | X | 61138367132 | $1.83 | Shop at ECS Tuning | ||||
| 07 | Screw | 4 | 61131392843 | ENDED | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M8 | 1 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Gasket | 1 | 61131393385 | $4.52 | Shop at ECS Tuning | |||||
| 10 | Intermediate piece | 1 | 61138353449 | $5.43 | ENDED | Shop at ECS Tuning | ||||
| 11 | Relay covering | 1 | 12631735752 | $2.22 | Shop at ECS Tuning | |||||
| 12 | Rubber grommet | 1 | 61138353221 | $2.10 | Shop at ECS Tuning | |||||
| 13 | Rubber grommet | 1 | 61138353222 | $1.63 | Shop at ECS Tuning | |||||
| 14 | Fuse carrier | 10X | 1 | 61131387123 | $2.42 | Shop at ECS Tuning | ||||
| 14 | Fuse carrier | 16X | 1 | 61131387124 | $3.38 | Shop at ECS Tuning | ||||
| 15 | Slider | 16X | 1 | 61131387128 | $0.77 | Shop at ECS Tuning | ||||
| 15 | Slider | 10X | 1 | 61131387129 | $0.68 | Shop at ECS Tuning | ||||
