Single parts for rear window wiper for BMW MINI Clubman F54 Cooper (2019)

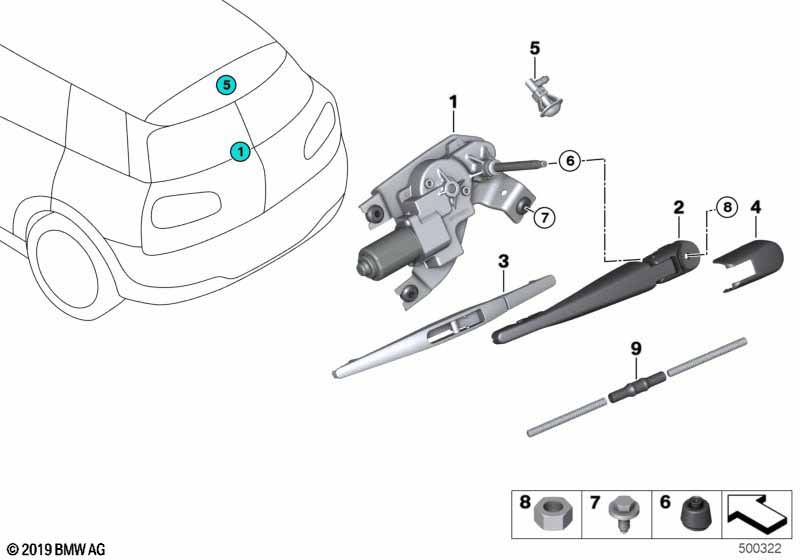

This Single parts for rear window wiper technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper motor, rear window, left | 1 | 61627365819 | Shop at ECS Tuning | ||||||
| 01 | Wiper motor, rear window, right | 1 | 61627365820 | Shop at ECS Tuning | ||||||
| 02 | Rear window wiper arm | 2 | 67637368089 | Shop at ECS Tuning | ||||||
| 03 | Wiper blade | 2 | 67637368091 | Shop at ECS Tuning | ||||||
| 04 | Wiper arm cover | 2 | 67637368092 | Shop at ECS Tuning | ||||||
| 05 | Rear washer nozzle | 2 | 61687417638 | Shop at ECS Tuning | ||||||
| 06 | Grommet f rear window wiper motor | 2 | 61627383228 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M6X25-U2 | 6 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Rep. kit for hose, wiper system | 1 | 61667208073 | $16.98 | Shop at ECS Tuning |
