High-voltage battery control units for BMW 3 Series F30 LCI 330e (2016)

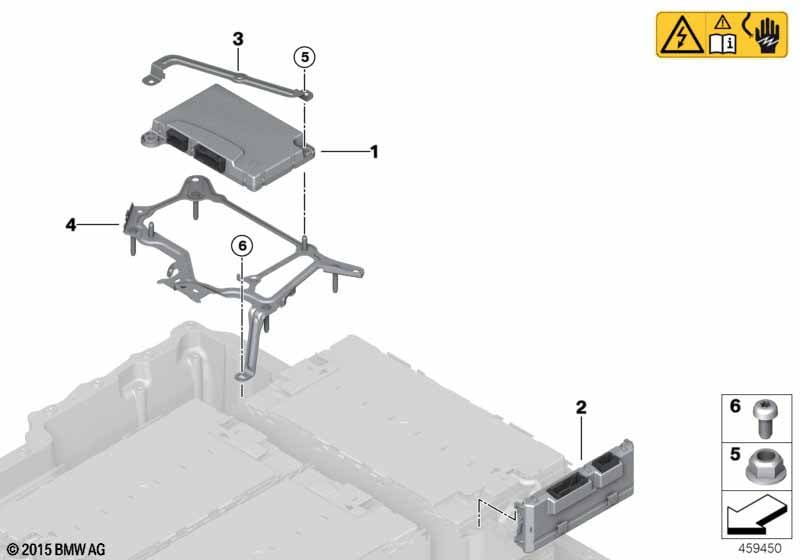

This High-voltage battery control units technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electronic memory management | 1 | 61277536512 | Shop at ECS Tuning | ||||||
| 02 | Cell monitoring circuit | 5 | 61278482940 | Shop at ECS Tuning | ||||||
| 03 | Bracket for safety box/SME | 1 | 61278624341 | Shop at ECS Tuning | ||||||
| 04 | Bracket for SME battery management | 1 | 61278657703 | Shop at ECS Tuning | ||||||
| 05 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 06 | ISA screw | V-M6GFX16 | 4 | 07129908570 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 LCI 330e High-voltage battery control units?
- This technical diagram illustrates the High-voltage battery control units within the Vehicle electrical system group for the 3 Series F30 LCI 330e produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the Electronic memory management (Part #61277536512).
- Which models use the hardware listed in this High-voltage battery control units?
- The hardware and components featured in the High-voltage battery control units are specific to the 3 Series F30 LCI 330e produced during 2016. These technical specifications ensure that parts like the Electronic memory management (61277536512) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-voltage battery control units assembly?
- Each item in the High-voltage battery control units corresponds to the numbered list below the illustration. For the 3 Series F30 LCI 330e, you can identify the Electronic memory management by locating its position on the schematic, which then links to the official BMW part number 61277536512 for the Vehicle electrical system section.
