Power distribution box / B+ distributor for BMW 7 Series G11 LCI 730dX (2020)

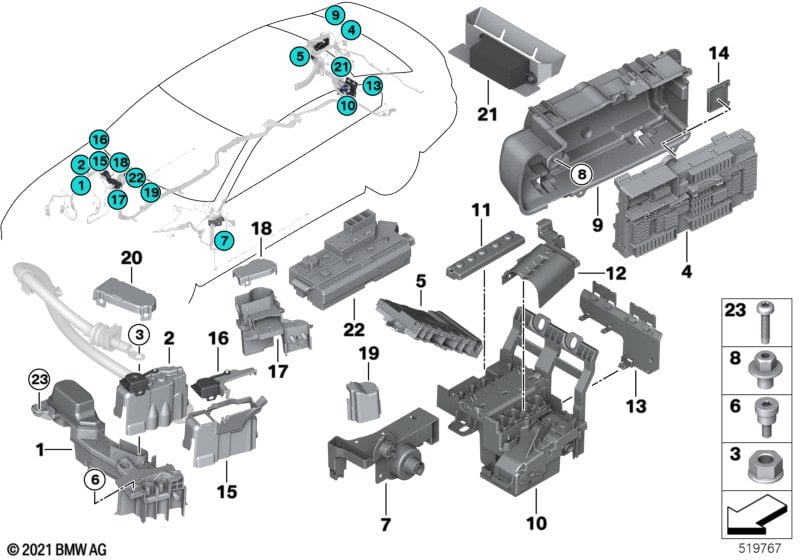

This Power distribution box / B+ distributor technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Batt.voltage for jump start terminal | 600W MID | 1 | 61146804727 | Shop at ECS Tuning | |||||
| For vehicles with Executive Drive Pro and Trailer coupling and Auxiliary heating and Coolbox and Trailer coupling preparation |
S2VSA=Yes S3ACA=No S536A=Yes S791A=Yes S8SLA=No |
|||||||||
| 01 | Batt.voltage for jump start terminal | 600W HIGH | 1 | 61146804729 | Shop at ECS Tuning | |||||
| 02 | Cover base B+ | 1 | 61148793045 | Shop at ECS Tuning | ||||||
| 03 | Flange nut | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Power distribution box, rear | BASIS | 1 | 03/2019 | 61148713128 | Shop at ECS Tuning | ||||
| For vehicles with Trailer coupling and Expanded rear climate control and Trailer coupling preparation |
S3ACA=Yes S4NFA=Yes S8SLA=Yes |
|||||||||
| 04 | Power distribution box, rear | HIGH | 1 | 03/2019 | 61148713126 | Shop at ECS Tuning | ||||
| For vehicles with Executive lounge and Integral active steering and Comfort access and Trailer coupling and Sky Lounge panoramic glass sunroof and Executive Lounge Fondkonsole and Expanded rear climate control and Fond Entertainment Experience and BMW Touch Command and Trailer coupling preparation |
P7GZA=Yes S2VHA=Yes S322A=Yes S3ACA=No S407A=Yes S4F5A=Yes S4NFA=No S6FRA=Yes S6U9A=Yes S8SLA=No |
|||||||||
| 04 | Power distribution box, rear | MID | 1 | 03/2019 | 61148713127 | Shop at ECS Tuning | ||||
| 05 | B+ junction terminal | 1 | 61149353742 | Shop at ECS Tuning | ||||||
| 06 | Screw | 1 | 07149364778 | Shop at ECS Tuning | ||||||
| 07 | Bracket current distributor | 1 | 61139331168 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | 2 | 61356953432 | $0.37 | Shop at ECS Tuning | |||||
| 09 | Bracket current distributor | 1 | 61139331165 | Shop at ECS Tuning | ||||||
| 10 | Power distribution box, rear | 1 | 61145A693E1 | Shop at ECS Tuning | ||||||
| For vehicles with M sports suspension Professional |
S2VWA=No |
|||||||||
| 10 | Power distribution box, rear | 1 | 61145A693C9 | Shop at ECS Tuning | ||||||
| 11 | Cover | 1 | 61149348971 | Shop at ECS Tuning | ||||||
| 12 | Cover | 1 | 61149348970 | Shop at ECS Tuning | ||||||
| 17 | Pos.battery term.power dist.box EMARS | 1 | 61149339834 | Shop at ECS Tuning | ||||||
| 18 | Cover | 1 | 61149340274 | Shop at ECS Tuning | ||||||
| 19 | Cover | 1 | 61149340275 | Shop at ECS Tuning | ||||||
| Check installation in vehicle! | ||||||||||
| 22 | Power distribution box, front right | 1 | 61149350313 | Shop at ECS Tuning | ||||||
| 22 | Power distribution box, front left | 1 | 61149350314 | Shop at ECS Tuning | ||||||
| 23 | Screw | V-M8GFX35 | 1 | 07129908701 | Shop at ECS Tuning | |||||
