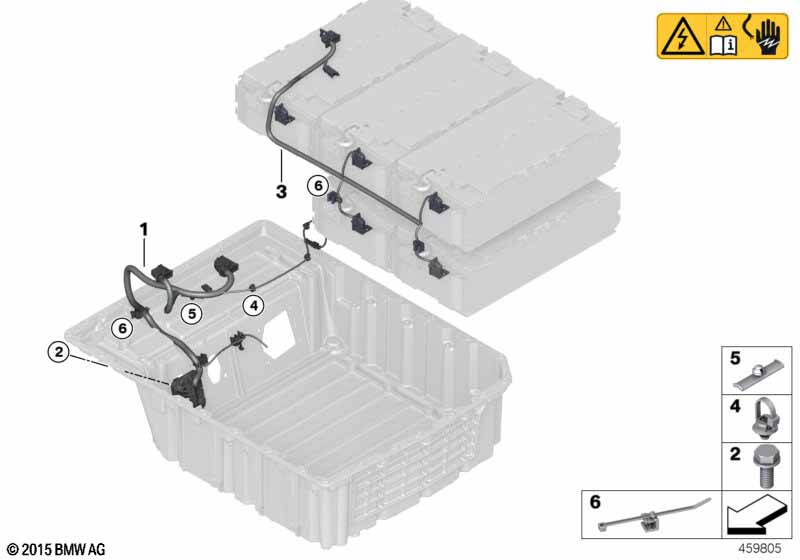

High-voltage battery wiring harness for BMW 2 Series F45 Active Tourer 225xe (2018)
This High-voltage battery wiring harness technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 225xe. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced to 06/30/2019 |
|||||||||
| 01 | Communications wiring harness | 1 | 61278697674 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | M5X10 | 4 | 07119906043 | $2.84 | Shop at ECS Tuning | ||||
| 03 | CSC wiring harness | 1 | 61278634706 | Shop at ECS Tuning | ||||||
| 04 | Cable strap with bracket | Ø=7,9 / L=150 | 2 | 61138375988 | $0.37 | Shop at ECS Tuning | ||||
| 05 | Cable holder | 2 | 61136964200 | $0.42 | Shop at ECS Tuning | |||||
| 06 | Cable strap with bracket | L=200MM | 4 | 34327708473 | Shop at ECS Tuning | |||||
