High-voltage battery housing for BMW 7 Series G12 740LeX (2018)

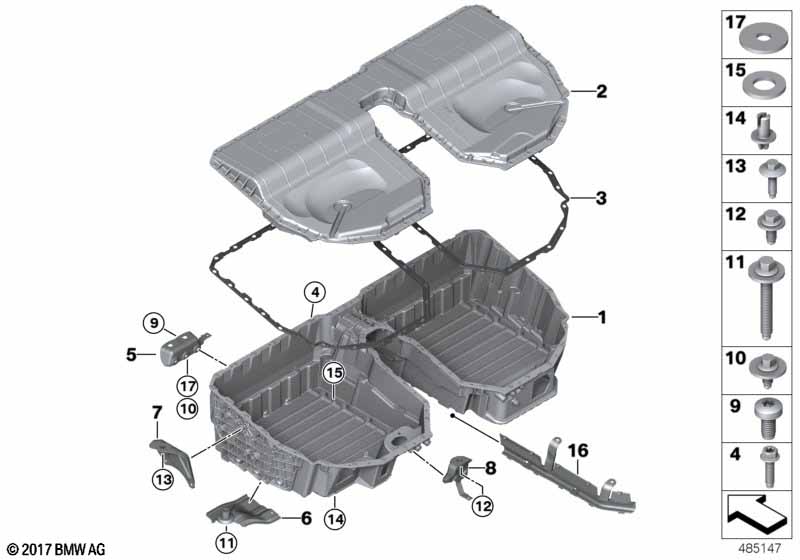

This High-voltage battery housing technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LeX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing for high-voltage battery | 1 | 61278614092 | Shop at ECS Tuning | ||||||
| 02 | Cover for high-voltage battery | 1 | 61278614093 | Shop at ECS Tuning | ||||||
| 03 | Seal for HV battery | 1 | 61278620917 | Shop at ECS Tuning | ||||||
| 04 | Hexagon bolt with inside Torx | M6X25MM | 49 | 61278677638 | Shop at ECS Tuning | |||||
| 05 | Angle bracket, front left | 1 | 61258614768 | Shop at ECS Tuning | ||||||
| 05 | Angle bracket, front right | 1 | 61258614769 | Shop at ECS Tuning | ||||||
| 06 | Left bracket | 1 | 61258614770 | Shop at ECS Tuning | ||||||
| 06 | Right bracket | 1 | 61258614771 | Shop at ECS Tuning | ||||||
| 07 | Retaining bracket side top left | 1 | 61258614772 | Shop at ECS Tuning | ||||||
| 07 | Retaining bracket side top right | 1 | 61258614773 | Shop at ECS Tuning | ||||||
| 08 | Retaining bracket rear left | 1 | 61258614774 | Shop at ECS Tuning | ||||||
| 08 | Retaining bracket rear right | 1 | 61258614775 | Shop at ECS Tuning | ||||||
| 09 | Screw | V-M8GFX18-SP-10 | 22 | 07129908674 | Shop at ECS Tuning | |||||
| 10 | ASA bolt with washer | M8X21MM | 4 | 61278687421 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M8X55 | 2 | 61258624724 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M12X26 | 2 | 61258624725 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M10X38 | 2 | 61258632010 | Shop at ECS Tuning | |||||
| 14 | Cooler locating stud | 4 | 61278610833 | Shop at ECS Tuning | ||||||
| 15 | Plastic washer | 10X5.8X1.5-PA6 | 4 | 61278638444 | Shop at ECS Tuning | |||||
| 16 | Cable guide | 1 | 61139356488 | Shop at ECS Tuning | ||||||
| 17 | Washer | 4 | 61278687078 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740LeX High-voltage battery housing?
- This technical diagram illustrates the High-voltage battery housing within the Vehicle electrical system group for the 7 Series G12 740LeX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Housing for high-voltage battery (Part #61278614092).
- Which models use the hardware listed in this High-voltage battery housing?
- The hardware and components featured in the High-voltage battery housing are specific to the 7 Series G12 740LeX produced during 2018. These technical specifications ensure that parts like the Housing for high-voltage battery (61278614092) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-voltage battery housing assembly?
- Each item in the High-voltage battery housing corresponds to the numbered list below the illustration. For the 7 Series G12 740LeX, you can identify the Housing for high-voltage battery by locating its position on the schematic, which then links to the official BMW part number 61278614092 for the Vehicle electrical system section.
