Various additional cable harnesses for BMW 5 Series G30 520i (2020)

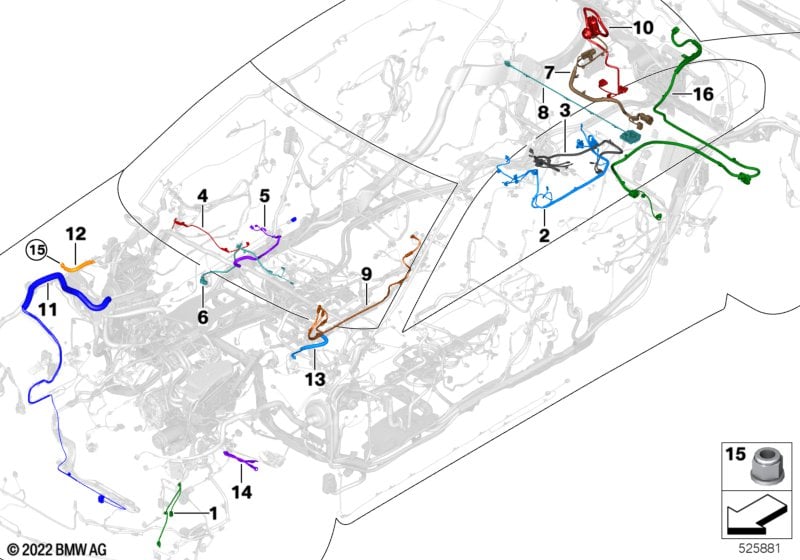

This Various additional cable harnesses technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 01 | Wiring set independent heating | 1 | 61129389278 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient Air Paket |
S4NMA=Yes |
|||||||||
| 04 | Wiring harness air freshener | 1 | 61129389675 | Shop at ECS Tuning | ||||||
| 04 | Wiring harness, air freshener, ionizer | 1 | 61116991486 | Shop at ECS Tuning | ||||||
| 05 | Wiring harness decorative trim | 1 | 61129366338 | Shop at ECS Tuning | ||||||
| For vehicles with Integral active steering |
S2VHA=Yes |
|||||||||
| 07 | Wiring harness, rear slip angle control | 1 | 61129366334 | Shop at ECS Tuning | ||||||
| For vehicles with Convenience phone, expanded Smartphone |
S6NSA=Yes |
|||||||||
| 09 | Cable set for USB | 1 | 61129366330 | Shop at ECS Tuning | ||||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=No S6NVA=Yes S6NWA=Yes |
|||||||||
| 09 | Cable set for USB | 1 | 61126820318 | Shop at ECS Tuning | ||||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=No S6NVA=Yes S6NWA=No |
|||||||||
| 09 | Cable set for USB | 1 | 61126820318 | Shop at ECS Tuning | ||||||
| For vehicles with Convenience phone, expanded Smartphone and Phoning with wireless charging and Phoning with wireless charging |
S6NSA=No S6NVA=No S6NWA=Yes |
|||||||||
| 09 | Cable set for USB | 1 | 61126820318 | Shop at ECS Tuning | ||||||
| 11 | Wiring harness for EPS | 1 | 61118701899 | Shop at ECS Tuning | ||||||
| 14 | Ground wire,electric a/c compressor/EDH | 1 | 08/2020 | 61126841345 | Shop at ECS Tuning | |||||
| 14 | Ground wire,electric a/c compressor/EDH | 1 | 61128779605 | Shop at ECS Tuning | ||||||
| 15 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Rep.wiring harness, GSD | 1 | 61128736291 | Shop at ECS Tuning | ||||||
