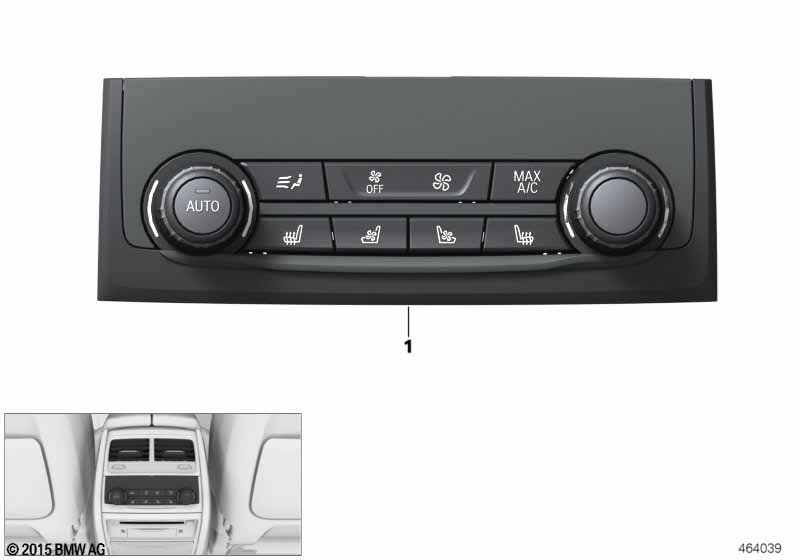

Heating/air conditioner actuation rear for BMW 7 Series G12 740LeX (2019)
This Heating/air conditioner actuation rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LeX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
||||||||
| For vehicles with Climate-controlled seats, rear and Ceramic appliques for controls |
S454A=Yes S4U1A=Yes |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999390 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Ceramic appliques for controls |
S454A=Yes S4U1A=No |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999389 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear and Warmth Comfort Package and Ceramic appliques for controls |
S454A=No S4HAA=No S4HCA=No S4U1A=No |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999389 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear and Warmth Comfort Package and Ceramic appliques for controls |
S454A=No S4HAA=No S4HCA=No S4U1A=Yes |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999390 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear and Warmth Comfort Package and Ceramic appliques for controls |
S454A=No S4HAA=Yes S4HCA=Yes S4U1A=No |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999389 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear and Warmth Comfort Package and Ceramic appliques for controls |
S454A=No S4HAA=Yes S4HCA=No S4U1A=No |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999389 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear and Warmth Comfort Package and Ceramic appliques for controls |
S454A=No S4HAA=No S4HCA=Yes S4U1A=No |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999389 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear and Warmth Comfort Package and Ceramic appliques for controls |
S454A=No S4HAA=Yes S4HCA=Yes S4U1A=Yes |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999390 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear and Warmth Comfort Package and Ceramic appliques for controls |
S454A=No S4HAA=Yes S4HCA=No S4U1A=Yes |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999390 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, rear and Seat heating, front and rear and Warmth Comfort Package and Ceramic appliques for controls |
S454A=No S4HAA=No S4HCA=Yes S4U1A=Yes |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999390 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740LeX Heating/air conditioner actuation rear?
- This technical diagram illustrates the Heating/air conditioner actuation rear within the Vehicle electrical system group for the 7 Series G12 740LeX produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Rep. kit, climate control panel, rear (Part #61316999390).
- Which models use the hardware listed in this Heating/air conditioner actuation rear?
- The hardware and components featured in the Heating/air conditioner actuation rear are specific to the 7 Series G12 740LeX produced during 2019. These technical specifications ensure that parts like the Rep. kit, climate control panel, rear (61316999390) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heating/air conditioner actuation rear assembly?
- Each item in the Heating/air conditioner actuation rear corresponds to the numbered list below the illustration. For the 7 Series G12 740LeX, you can identify the Rep. kit, climate control panel, rear by locating its position on the schematic, which then links to the official BMW part number 61316999390 for the Vehicle electrical system section.
