Relay terminal 30B Z43_1 for BMW 7 Series G12 740eX (2019)

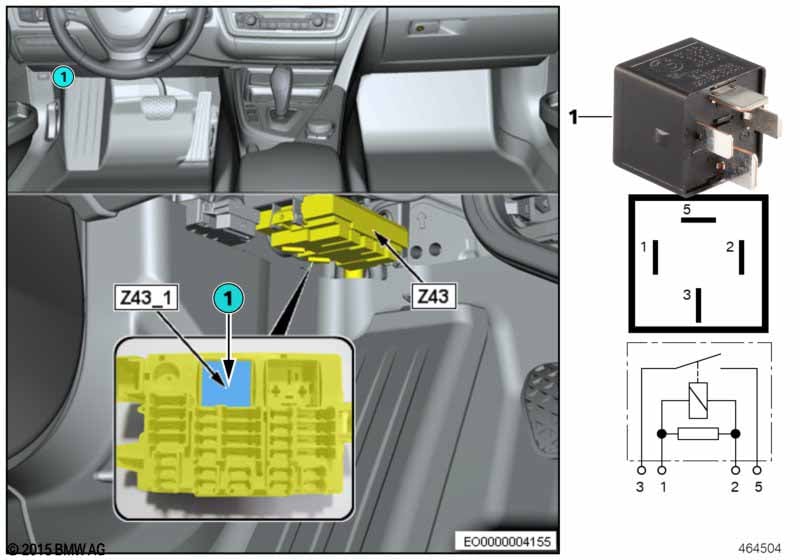

This Relay terminal 30B Z43_1 technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay, make contact, black | LVA | 1 | 61366901469 | $13.96 | +core | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740eX Relay terminal 30B Z43_1?
- This technical diagram illustrates the Relay terminal 30B Z43_1 within the Vehicle electrical system group for the 7 Series G12 740eX produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Relay, make contact, black (Part #61366901469).
- Which models use the hardware listed in this Relay terminal 30B Z43_1?
- The hardware and components featured in the Relay terminal 30B Z43_1 are specific to the 7 Series G12 740eX produced during 2019. These technical specifications ensure that parts like the Relay, make contact, black (61366901469) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay terminal 30B Z43_1 assembly?
- Each item in the Relay terminal 30B Z43_1 corresponds to the numbered list below the illustration. For the 7 Series G12 740eX, you can identify the Relay, make contact, black by locating its position on the schematic, which then links to the official BMW part number 61366901469 for the Vehicle electrical system section.
