Switch, steering wheel 'Sport' for BMW 7 Series G12 740i (2019)

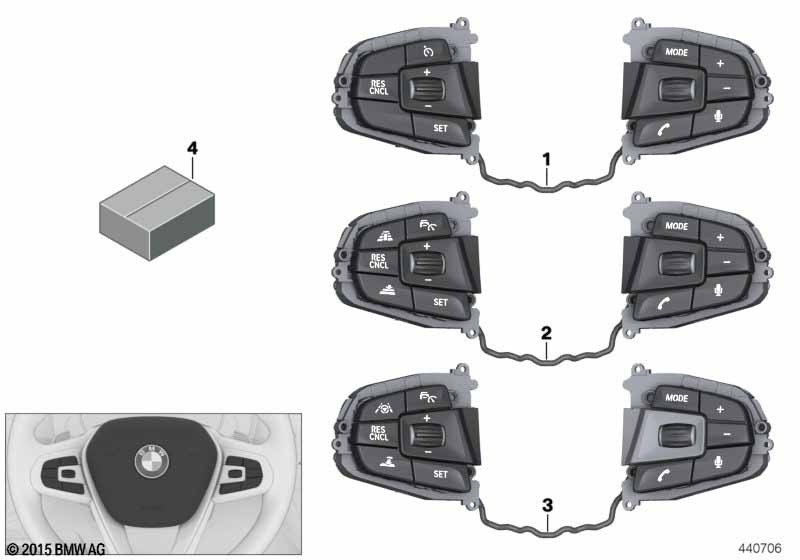

This Switch, steering wheel 'Sport' technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports leather steering wheel and Leather steering wheel, wood appliques |
S255A=Yes S2XLA=No |
||||||||
| For vehicles with Driving Assistant Plus and Active cruise control+Stop&Go function |
S5ATA=No S5DFA=No |
|||||||||
| 01 | Switch, multifunct. steering wheel | 1 | 61319388735 | Shop at ECS Tuning | ||||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 02 | Switch, multifunct. steering wheel | 1 | 61319388737 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus |
S5ATA=Yes |
|||||||||
| 03 | Switch, multifunct. steering wheel | 1 | 61319388739 | Shop at ECS Tuning | ||||||
| 04 | Set of screws | 1 | 32306884696 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740i Switch, steering wheel 'Sport'?
- This technical diagram illustrates the Switch, steering wheel 'Sport' within the Vehicle electrical system group for the 7 Series G12 740i produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Switch, multifunct. steering wheel (Part #61319388735).
- Which models use the hardware listed in this Switch, steering wheel 'Sport'?
- The hardware and components featured in the Switch, steering wheel 'Sport' are specific to the 7 Series G12 740i produced during 2019. These technical specifications ensure that parts like the Switch, multifunct. steering wheel (61319388735) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch, steering wheel 'Sport' assembly?
- Each item in the Switch, steering wheel 'Sport' corresponds to the numbered list below the illustration. For the 7 Series G12 740i, you can identify the Switch, multifunct. steering wheel by locating its position on the schematic, which then links to the official BMW part number 61319388735 for the Vehicle electrical system section.
