HV cables for BMW 3 Series F30 LCI 330e (2018)

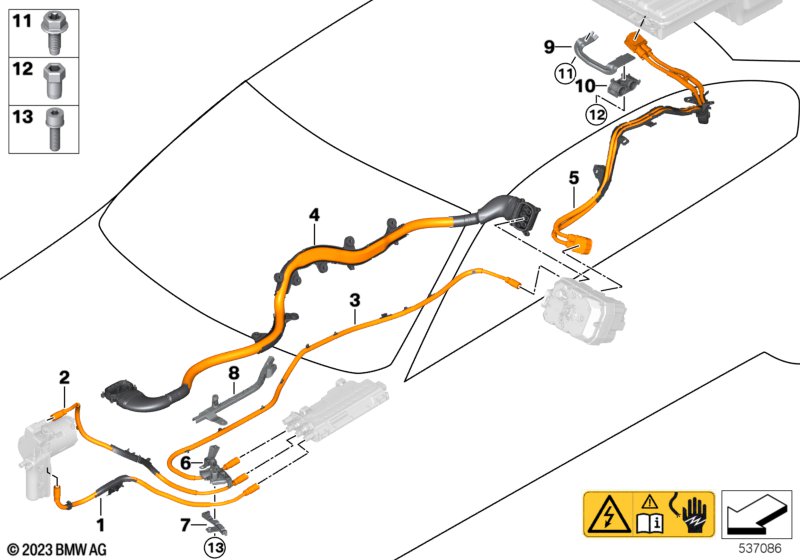

This HV cables technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | High-voltage wire for EDH | 1 | 61126824108 | Shop at ECS Tuning | ||||||
| 02 | High-voltage wire,electr a/c compressor | 1 | 61126824109 | Shop at ECS Tuning | ||||||
| 03 | HV battery cable, charging electronics | 1 | 61126824114 | Shop at ECS Tuning | ||||||
| 04 | High-voltage cable electrical machine | 1 | 61126824116 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | ASA-Bolt | M6X26,5 | 8 | 61136824587 | Shop at ECS Tuning | |||||
| -- | Hex nut | M6 | 1 | 07146820320 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 04 | High-voltage cable electrical machine | 1 | 61126824115 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | ASA-Bolt | M6X26,5 | 8 | 61136824587 | Shop at ECS Tuning | |||||
| 05 | High-voltage cable power electronics | 1 | 61126824110 | Shop at ECS Tuning | ||||||
| 06 | Tension relief f.wir.harness lower part | 1 | 61139370417 | Shop at ECS Tuning | ||||||
| 07 | Tension relief for wi.harn.upper section | 1 | 61139370418 | Shop at ECS Tuning | ||||||
| 08 | Wiring duct | 1 | 61139374503 | NoS | Shop at ECS Tuning | |||||
| 09 | Bracket for HV wire | 1 | 61139382476 | Shop at ECS Tuning | ||||||
| 10 | Bracket for HV wire | 1 | 61139370402 | Shop at ECS Tuning | ||||||
| 11 | Hexagon bolt with inside Torx | M6X16 | 1 | 61278625078 | Shop at ECS Tuning | |||||
| 12 | Bolting pin, short | 1 | 16126766237 | $0.35 | Shop at ECS Tuning | |||||
| 13 | Fillister head with washer | M5X16 | 4 | 07129903041 | $1.36 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
