Battery cable/earth cable for BMW 3 Series F30 LCI 330e (2016)

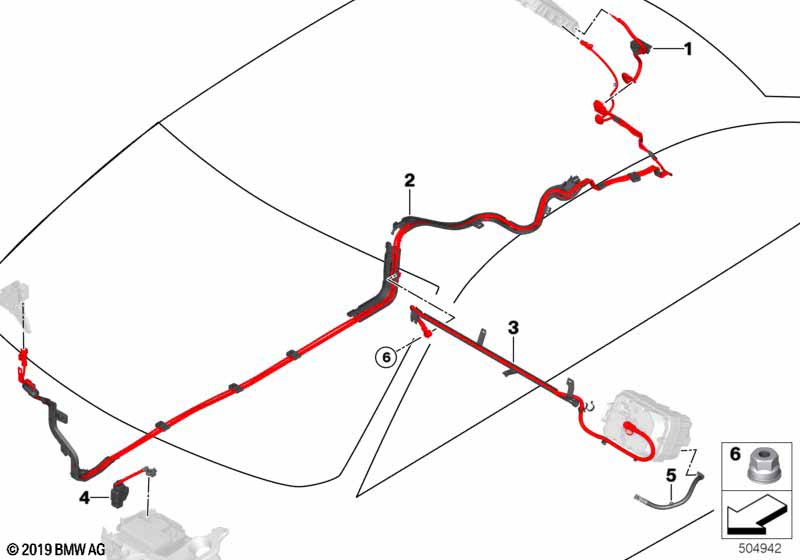

This Battery cable/earth cable technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Positive battery lead | HYBRID | 1 | 61129270244 | Shop at ECS Tuning | |||||
| 02 | Battery cable positive, below-floor | 1 | 61129387149 | Shop at ECS Tuning | ||||||
| 03 | Battery cable plus EME | 1 | 61129387147 | Shop at ECS Tuning | ||||||
| 04 | Battery cable, B+, to aux. starter unit | 1 | 61129387151 | Shop at ECS Tuning | ||||||
| 05 | Battery cable negative | 1 | 61129387145 | Shop at ECS Tuning | ||||||
| 06 | Hex nut wiht flange | M6 | 1 | 07147199293 | Shop at ECS Tuning |
