Battery cable for BMW 2 Series F45 Active Tourer LCI 218dX (2020)

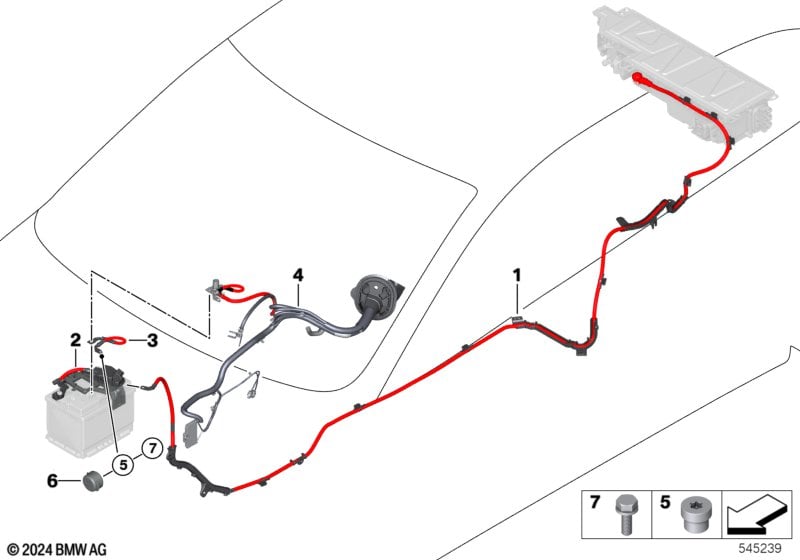

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 218dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Adapter for jump start terminal | 1 | 61126825835 | Shop at ECS Tuning | ||||||
| 04 | Rep.kit B+ distributor | 1 | 61118717316 | Shop at ECS Tuning | ||||||
| 05 | Positive terminal nut | TORX | 1 | 07149217726 | Shop at ECS Tuning | |||||
| 06 | Cover for remote jump-start terminal | 1 | 61139318948 | Shop at ECS Tuning | ||||||
| 07 | Hexagon bolt | 1 | 61295A43E01 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer LCI 218dX Battery cable?
- This technical diagram illustrates the Battery cable within the Vehicle electrical system group for the 2 Series F45 Active Tourer LCI 218dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Adapter for jump start terminal (Part #61126825835).
- Which models use the hardware listed in this Battery cable?
- The hardware and components featured in the Battery cable are specific to the 2 Series F45 Active Tourer LCI 218dX produced during 2020. These technical specifications ensure that parts like the Adapter for jump start terminal (61126825835) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable assembly?
- Each item in the Battery cable corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer LCI 218dX, you can identify the Adapter for jump start terminal by locating its position on the schematic, which then links to the official BMW part number 61126825835 for the Vehicle electrical system section.
