Relay, electric fan motor 850W K5 for BMW 3 Series F30 LCI 340i (2018)

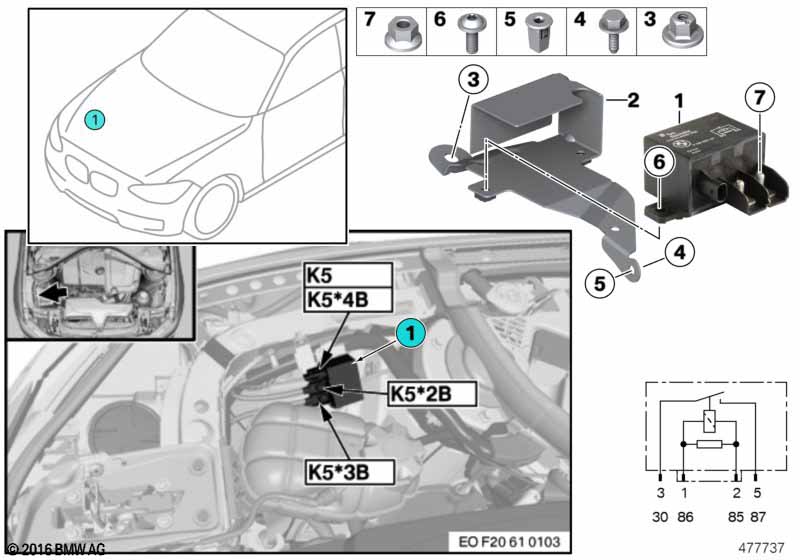

This Relay, electric fan motor 850W K5 technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 01 | Relay | 130A 1000W | 1 | 03/2018 | 61366836504 | Shop at ECS Tuning | ||||
| 03 | Plastic nut for coarse threaded pin | M6 | 1 | 07147336362 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 LCI 340i Relay, electric fan motor 850W K5?
- This technical diagram illustrates the Relay, electric fan motor 850W K5 within the Vehicle electrical system group for the 3 Series F30 LCI 340i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Relay (Part #61366836504).
- Which models use the hardware listed in this Relay, electric fan motor 850W K5?
- The hardware and components featured in the Relay, electric fan motor 850W K5 are specific to the 3 Series F30 LCI 340i produced during 2018. These technical specifications ensure that parts like the Relay (61366836504) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay, electric fan motor 850W K5 assembly?
- Each item in the Relay, electric fan motor 850W K5 corresponds to the numbered list below the illustration. For the 3 Series F30 LCI 340i, you can identify the Relay by locating its position on the schematic, which then links to the official BMW part number 61366836504 for the Vehicle electrical system section.
