Cable guide for BMW 7 Series G11 LCI 730i (2020)

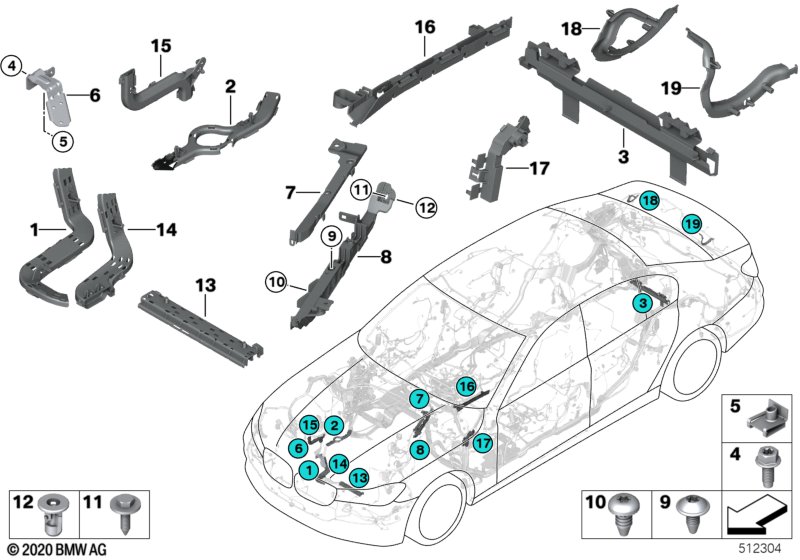

This Cable guide technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right cable guide | 1 | 61139325412 | Shop at ECS Tuning | ||||||
| 01 | Left cable guide | 1 | 61139325413 | Shop at ECS Tuning | ||||||
| 02 | Cable guide | 1 | 61139325416 | Shop at ECS Tuning | ||||||
| 03 | Cable guide | 1 | 61139380203 | Shop at ECS Tuning | ||||||
| 04 | Hexagon bolt with inside Torx | M6X16 | X | 61278625078 | Shop at ECS Tuning | |||||
| 05 | Flat nut | M6 | X | 63127694805 | $3.23 | Shop at ECS Tuning | ||||
| 06 | Holder | 1 | 61136824323 | Shop at ECS Tuning | ||||||
| 07 | Sealing frame upper section left | 1 | 61139334789 | Shop at ECS Tuning | ||||||
| 07 | Sealing frame upper section right | 1 | 61139334790 | Shop at ECS Tuning | ||||||
| 08 | Sealing frame lower part left | 1 | 61139334787 | Shop at ECS Tuning | ||||||
| 08 | Sealing frame lower part right | 1 | 61139334788 | Shop at ECS Tuning | ||||||
| 09 | Fillister head screw | 4 | 07149140365 | $0.25 | Shop at ECS Tuning | |||||
| 10 | Torx screw, self-threading | M6X13-ZNNIVSI | 4 | 31146786689 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | TS5X20 SW8 D=16 | 6 | 07147148437 | $0.44 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | L=18.4, DMAX=18 | 6 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Cable guide | 1 | 61136837367 | Shop at ECS Tuning |
