Trunk unlocking switch for BMW 5 Series G30 LCI 523dX (2019)

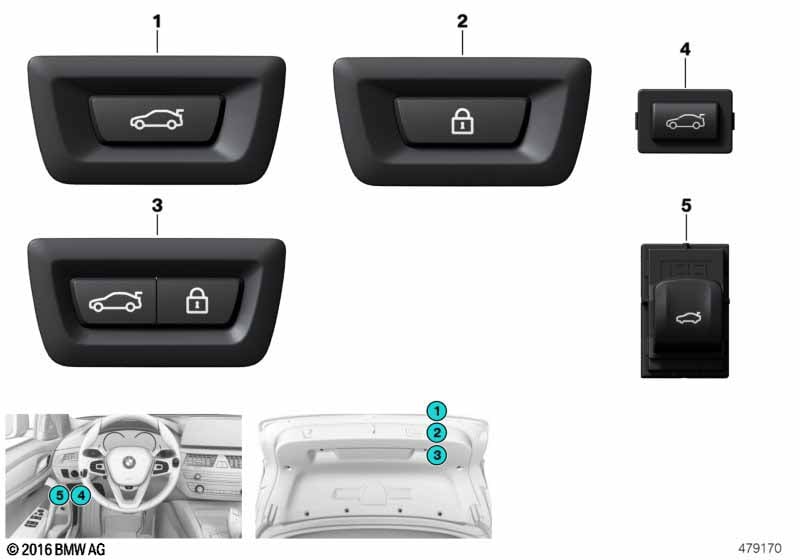

This Trunk unlocking switch technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 523dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with automatic trunk lid mechanism and Comfort access |
S316A=Yes S322A=No |
|||||||||
| 01 | Switch trunk lid | 1 | 07/2022 | 61319275119 | ENDED | Shop at ECS Tuning | ||||
| 01 | Trunk lid lock switch | HKL ORANGE | 1 | 61315A64C24 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism and Comfort access |
S316A=No S322A=Yes |
|||||||||
| 02 | Switch centerlock | ORANGE | 1 | 61315A64C26 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism and Comfort access |
S316A=Yes S322A=Yes |
|||||||||
| 03 | Switch for trunk-Centerlock | 1 | 07/2022 | 61319275121 | ENDED | Shop at ECS Tuning | ||||
| 03 | Trunk lid lock switch center lock | HKL CL ORANGE | 1 | 61315A64C25 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 04 | Trunk unlocking switch | 1 | 61319200316 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 05 | Switch trunk lid | 1 | 61319327029 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
