Steering wheel module and shift paddles for BMW 7 Series G12 LCI 730LdX (2020)

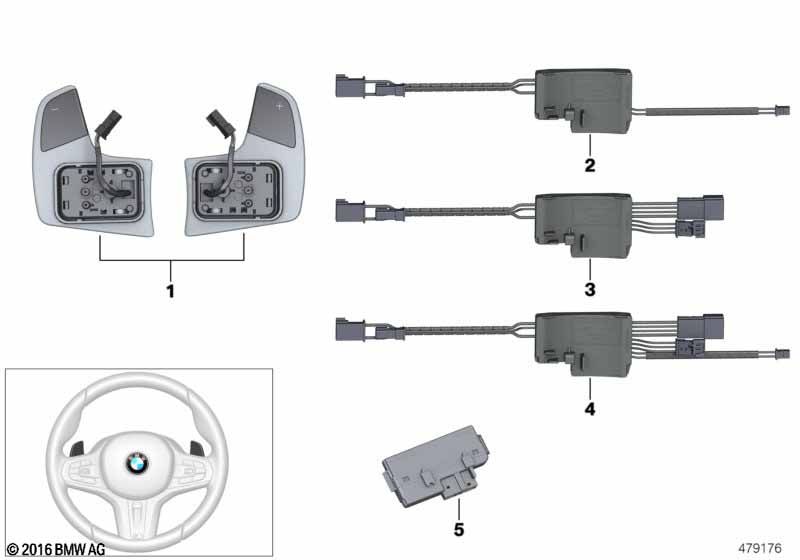

This Steering wheel module and shift paddles technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M leather steering wheel |
S710A=Yes |
||||||||
| 01 | Set of shift paddles | 1 | 61319372496 | Shop at ECS Tuning | ||||||
| For vehicles with Steering wheel heater and Warmth Comfort Package, front and Warmth Comfort Package and Driving Assistant and Driving Assistant Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S248A=No S4HBA=No S4HCA=No S5ASA=Yes S5ATA=Yes S5AUA=Yes S5DFA=Yes |
|||||||||
| 02 | Control unit, steering wheel electronics | UAK MSP | 1 | 03/2024 | 61317857776 | Shop at ECS Tuning | ||||
| 02 | Steering wheel electronic control | MSP UAK | 1 | 61317889339 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Warmth Comfort Package, front and Warmth Comfort Package and Driving Assistant and Driving Assistant Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S248A=Yes S4HBA=Yes S4HCA=Yes S5ASA=No S5ATA=No S5AUA=No S5DFA=No |
|||||||||
| 03 | Control unit, steering wheel electronics | LHZ MSP | 1 | 61317857777 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Warmth Comfort Package, front and Warmth Comfort Package and Driving Assistant and Driving Assistant Plus and Driving assistant professional and Active cruise control+Stop&Go function |
S248A=Yes S4HBA=Yes S4HCA=Yes S5ASA=Yes S5ATA=Yes S5AUA=Yes S5DFA=Yes |
|||||||||
| 04 | Control unit, steering wheel electronics | UAK LHZ MSP | 1 | 61317857778 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 05 | Control unit for touch detection | 1 | 32309438790 | Shop at ECS Tuning | ||||||
| 05 | Control unit for touch detection | 1 | 32305A556D4 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 LCI 730LdX Steering wheel module and shift paddles?
- This technical diagram illustrates the Steering wheel module and shift paddles within the Vehicle electrical system group for the 7 Series G12 LCI 730LdX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Set of shift paddles (Part #61319372496).
- Which models use the hardware listed in this Steering wheel module and shift paddles?
- The hardware and components featured in the Steering wheel module and shift paddles are specific to the 7 Series G12 LCI 730LdX produced during 2020. These technical specifications ensure that parts like the Set of shift paddles (61319372496) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering wheel module and shift paddles assembly?
- Each item in the Steering wheel module and shift paddles corresponds to the numbered list below the illustration. For the 7 Series G12 LCI 730LdX, you can identify the Set of shift paddles by locating its position on the schematic, which then links to the official BMW part number 61319372496 for the Vehicle electrical system section.
