Switch for steering wheel M Sport for BMW 7 Series G12 740Li (2019)

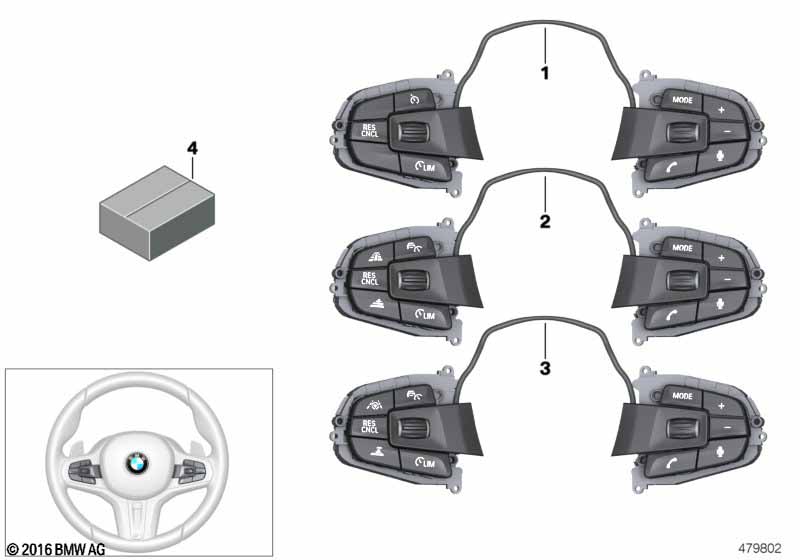

This Switch for steering wheel M Sport technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M leather steering wheel |
S710A=Yes |
||||||||
| For vehicles with Driving Assistant Plus and Active cruise control+Stop&Go function |
S5ATA=No S5DFA=No |
|||||||||
| 01 | Switch, MF steering wheel, M-Sport | 1 | 61318064474 | Shop at ECS Tuning | ||||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 02 | Switch, MF steering wheel, M-Sport | 1 | 61318064476 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant Plus |
S5ATA=Yes |
|||||||||
| 03 | Switch, MF steering wheel, M-Sport | 1 | 61318064478 | Shop at ECS Tuning | ||||||
| 04 | Set of screws | 1 | 32308090405 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740Li Switch for steering wheel M Sport?
- This technical diagram illustrates the Switch for steering wheel M Sport within the Vehicle electrical system group for the 7 Series G12 740Li produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Switch, MF steering wheel, M-Sport (Part #61318064474).
- Which models use the hardware listed in this Switch for steering wheel M Sport?
- The hardware and components featured in the Switch for steering wheel M Sport are specific to the 7 Series G12 740Li produced during 2019. These technical specifications ensure that parts like the Switch, MF steering wheel, M-Sport (61318064474) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch for steering wheel M Sport assembly?
- Each item in the Switch for steering wheel M Sport corresponds to the numbered list below the illustration. For the 7 Series G12 740Li, you can identify the Switch, MF steering wheel, M-Sport by locating its position on the schematic, which then links to the official BMW part number 61318064474 for the Vehicle electrical system section.
