Heating/air conditioner actuation rear for BMW 5 Series G30 520d (2019)

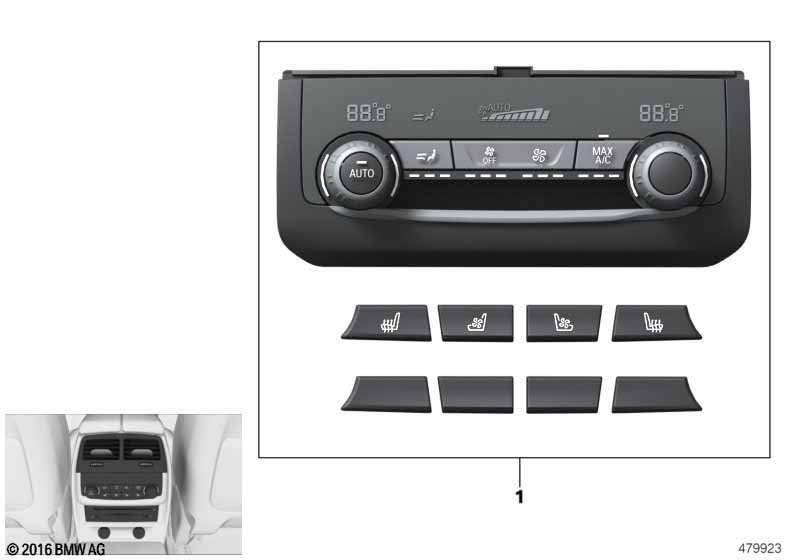

This Heating/air conditioner actuation rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
||||||||
| For vehicles with Ceramic appliques for controls |
S4U1A=No |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999435 | Shop at ECS Tuning | ||||||
| For vehicles with Ceramic appliques for controls |
S4U1A=Yes |
|||||||||
| 01 | Rep. kit, climate control panel, rear | 1 | 61316999436 | Shop at ECS Tuning | ||||||
