Control units seat module for BMW 5 Series G30 520d (2017)

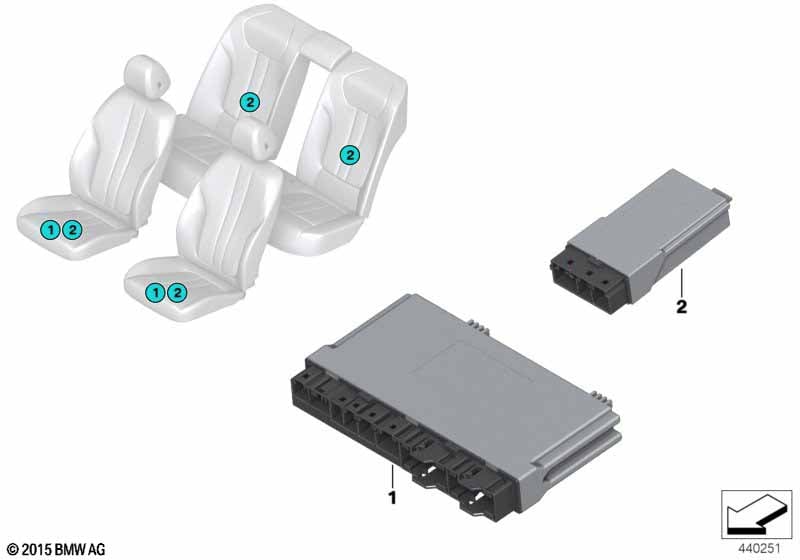

This Control units seat module technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Climate-controlled seats, front and Comfort seat with memory Driver's and passenger side |
S453A=Yes S456A=Yes |
|||||||||
| 01 | Seat module | 2 | 11/2018 | 61359483828 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 2 | 03/2019 | 61359891564 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 2 | 03/2024 | 61355A7CB24 | Shop at ECS Tuning | |||||
| 01 | Seat module | 2 | 07/2024 | 61355B359D9 | Shop at ECS Tuning | |||||
| 01 | Seat module | SM MU-K | 2 | 61355B44735 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory Driver's and passenger side |
S453A=Yes S456A=No |
|||||||||
| 01 | Seat module | 2 | 11/2018 | 61359483828 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 2 | 03/2019 | 61359891564 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 2 | 03/2024 | 61355A7CB24 | Shop at ECS Tuning | |||||
| 01 | Seat module | 2 | 07/2024 | 61355B359D9 | Shop at ECS Tuning | |||||
| 01 | Seat module | SM MU-K | 2 | 61355B44735 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory Driver's and passenger side |
S453A=No S456A=Yes |
|||||||||
| 01 | Seat module | 2 | 11/2018 | 61359483828 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 2 | 03/2019 | 61359891564 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 2 | 03/2024 | 61355A7CB24 | Shop at ECS Tuning | |||||
| 01 | Seat module | 2 | 07/2024 | 61355B359D9 | Shop at ECS Tuning | |||||
| 01 | Seat module | SM MU-K | 2 | 61355B44735 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Driver's side |
S456A=No S459A=Yes S494A=Yes S4HAA=Yes S4MAA=No |
|||||||||
| 01 | Seat module | 1 | 11/2018 | 61359483826 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 61355A36988 | ENDED | Shop at ECS Tuning | |||||
| 01 | Seat module | 1 | 07/2023 | 61355A6A949 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 03/2024 | 61355A7CB21 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 07/2024 | 61355B359E3 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | SM BA-H | 1 | 61355B44733 | Shop at ECS Tuning | |||||
| 01 | Seat module | 1 | 61357471370 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Driver's side |
S456A=No S459A=Yes S494A=Yes S4HAA=No S4MAA=No |
|||||||||
| 01 | Seat module | 1 | 11/2018 | 61359483826 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 61355A36988 | ENDED | Shop at ECS Tuning | |||||
| 01 | Seat module | 1 | 07/2023 | 61355A6A949 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 03/2024 | 61355A7CB21 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 07/2024 | 61355B359E3 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | SM BA-H | 1 | 61355B44733 | Shop at ECS Tuning | |||||
| 01 | Seat module | 1 | 61357471370 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Driver's side |
S456A=No S459A=Yes S494A=No S4HAA=Yes S4MAA=No |
|||||||||
| 01 | Seat module | 1 | 11/2018 | 61359483826 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 61355A36988 | ENDED | Shop at ECS Tuning | |||||
| 01 | Seat module | 1 | 07/2023 | 61355A6A949 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 03/2024 | 61355A7CB21 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 07/2024 | 61355B359E3 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | SM BA-H | 1 | 61355B44733 | Shop at ECS Tuning | |||||
| 01 | Seat module | 1 | 61357471370 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Driver's side |
S453A=No S456A=No S459A=Yes S494A=No S4HAA=No S4MAA=No |
|||||||||
| 01 | Seat module | 1 | 11/2018 | 61359483826 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 61355A36988 | ENDED | Shop at ECS Tuning | |||||
| 01 | Seat module | 1 | 07/2023 | 61355A6A949 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 03/2024 | 61355A7CB21 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | 1 | 07/2024 | 61355B359E3 | ENDED | Shop at ECS Tuning | ||||
| 01 | Seat module | SM BA-H | 1 | 61355B44733 | Shop at ECS Tuning | |||||
| 01 | Seat module | 1 | 61357471370 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Seat heating, front and rear REAR SEAT |
S4HAA=Yes |
|||||||||
| 02 | Seat module | 2 | 61357490465 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear Passenger's side |
S453A=No S456A=No S459A=Yes S494A=No S4HAA=No |
|||||||||
| 02 | Seat module | 1 | 61357490465 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Driver's and passenger side |
S453A=No S456A=No S459A=No S494A=Yes S4HAA=Yes S4MAA=No |
|||||||||
| 02 | Seat module | 2 | 61357490465 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Driver's and passenger side |
S453A=No S456A=No S459A=No S494A=Yes S4HAA=No S4MAA=No |
|||||||||
| 02 | Seat module | 2 | 61357490465 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Driver's and passenger side |
S453A=No S456A=No S459A=No S494A=No S4HAA=Yes S4MAA=No |
|||||||||
| 02 | Seat module | 2 | 61357490465 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Passenger's side |
S453A=No S456A=No S459A=Yes S494A=Yes S4HAA=Yes S4MAA=No |
|||||||||
| 02 | Seat module | 1 | 61357490465 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Passenger's side |
S453A=No S456A=No S459A=Yes S494A=Yes S4HAA=No S4MAA=No |
|||||||||
| 02 | Seat module | 1 | 61357490465 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and Seat adjuster, electric, with memory and Seat heating driver/passenger and Seat heating, front and rear and M multifunction seat Passenger's side |
S453A=No S456A=No S459A=Yes S494A=No S4HAA=Yes S4MAA=No |
|||||||||
| 02 | Seat module | 1 | 61357490465 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
