Various wiring harnesses, hybrid for BMW 3 Series G20 Sedan 330e (2019)

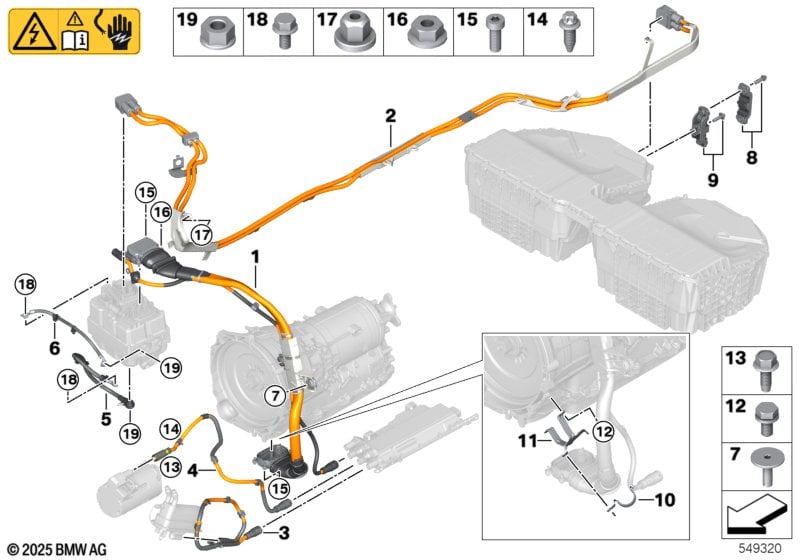

This Various wiring harnesses, hybrid technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| From A287*3B to A190*9B | ||||||||||
| 01 | High-voltage wiring harness KLE for LEB | 1 | 61129426382 | Shop at ECS Tuning | ||||||
| From A190*10B to M184*2B | ||||||||||
| 01 | High-volt.wir.harn.LEB - elect.mach. | 1 | 61129426357 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | ASA-Bolt | M6X26,5 | 4 | 61136824587 | Shop at ECS Tuning | |||||
| 02 | High-voltage cable set for HV battery | 1 | 61129426353 | Shop at ECS Tuning | ||||||
| 03 | High-voltage cable set, EDH | 1 | 61129426359 | Shop at ECS Tuning | ||||||
| 04 | HV wiring harness for el. AC compressor | 1 | 61129426361 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Torx screw with collar | M6X16-10.9-ZNS3 | 1 | 12726858057 | Shop at ECS Tuning | |||||
| -- | Screw self-tapping | M6X16MM | 1 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 05 | Wiring harn.pos.bat.term.power elect.kit | 1 | 02/2023 | 61128704698 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wiring harn.pos.bat.term.power elect.kit | RL | 1 | 61125A621F5 | NoS | Shop at ECS Tuning | ||||
| 06 | Wiring harn.neg.bat.term.power elect.kit | RL | 1 | 61128704694 | Shop at ECS Tuning | |||||
| 07 | Screw | 2 | 61136821612 | Shop at ECS Tuning | ||||||
| 08 | Tension relief for wi.harn.upper section | 1 | 61136808036 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | ASA screw | M6X20-8.8-ZNNIV | 1 | 07129907102 | Shop at ECS Tuning | |||||
| 09 | Tension relief f.wir.harness lower part | 1 | 61136808037 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Torx bolt | 1 | 11127624088 | Shop at ECS Tuning | ||||||
| 11 | Bracket for tension relief | 1 | 61128489493 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Screw self-tapping | M6X16MM | 1 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 14 | Torx screw with collar | M6X16-10.9-ZNS3 | 1 | 12726858057 | Shop at ECS Tuning | |||||
| 15 | ISA screw | M6X16-8.8-ZNS3 | 8 | 07129905494 | $3.65 | Shop at ECS Tuning | ||||
| 16 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 17 | Plastic nut for coarse threaded pin | M6 | 7 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
