Relay, electric fan motor 850W K5 for BMW 6 Series G32 GT 630d (2020)

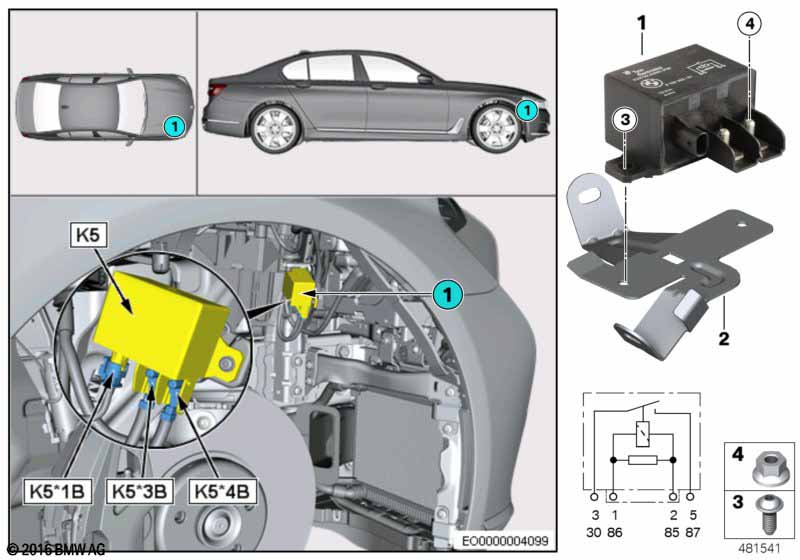

This Relay, electric fan motor 850W K5 technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Relay | 130A 1000W | 1 | 03/2018 | 61366836504 | Shop at ECS Tuning | ||||
| 02 | Bracket for relay | 1 | 07/2018 | 61366844018 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 03 | Screw | TS 5X12 | 2 | 07129908078 | Shop at ECS Tuning | |||||
| 04 | Nut | M6 | 2 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
