Holder Ethernet switchbox for BMW 5 Series G30 530d (2020)

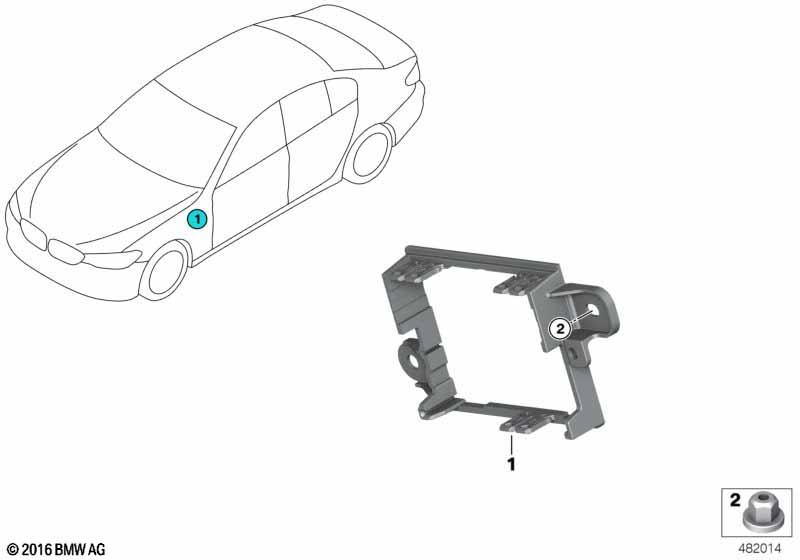

This Holder Ethernet switchbox technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with TV function and Navigation system Professional |
S601A=No S609A=No |
||||||||
| 01 | Holder Ethernet switchbox | 1 | 61359392242 | Shop at ECS Tuning | ||||||
| 02 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 530d Holder Ethernet switchbox?
- This technical diagram illustrates the Holder Ethernet switchbox within the Vehicle electrical system group for the 5 Series G30 530d produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Holder Ethernet switchbox (Part #61359392242).
- Which models use the hardware listed in this Holder Ethernet switchbox?
- The hardware and components featured in the Holder Ethernet switchbox are specific to the 5 Series G30 530d produced during 2020. These technical specifications ensure that parts like the Holder Ethernet switchbox (61359392242) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Holder Ethernet switchbox assembly?
- Each item in the Holder Ethernet switchbox corresponds to the numbered list below the illustration. For the 5 Series G30 530d, you can identify the Holder Ethernet switchbox by locating its position on the schematic, which then links to the official BMW part number 61359392242 for the Vehicle electrical system section.
