Integrated supply module Z11 for BMW MINI Cabrio F57 LCI One (2022)

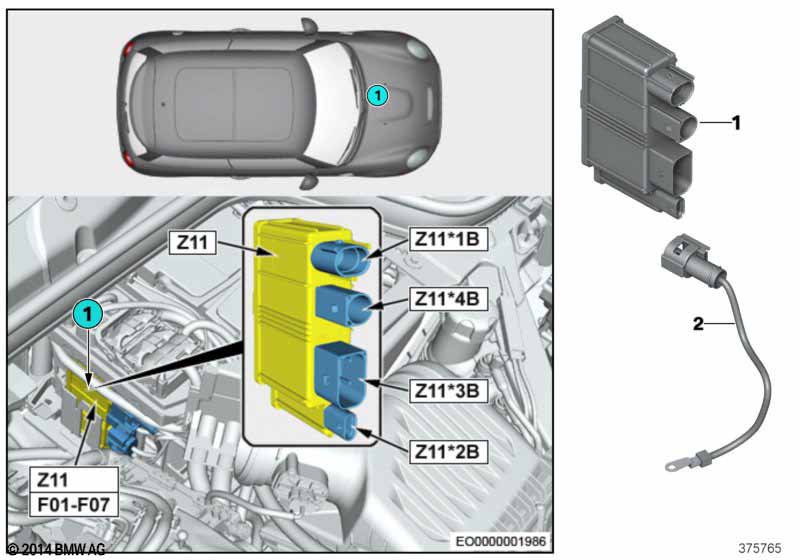

This Integrated supply module Z11 technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The body version shown in the illustration is intended only as an example and may vary from the original. |
|||||||||
| 01 | Integrated supply module Z11 | 1 | 07/2017 | 12638661071 | Shop at ECS Tuning | |||||
| 02 | Supply line | 1 | 12638589051 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 LCI One Integrated supply module Z11?
- This technical diagram illustrates the Integrated supply module Z11 within the Vehicle electrical system group for the MINI Cabrio F57 LCI One produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Integrated supply module Z11 (Part #12638661071).
- Which models use the hardware listed in this Integrated supply module Z11?
- The hardware and components featured in the Integrated supply module Z11 are specific to the MINI Cabrio F57 LCI One produced during 2022. These technical specifications ensure that parts like the Integrated supply module Z11 (12638661071) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Integrated supply module Z11 assembly?
- Each item in the Integrated supply module Z11 corresponds to the numbered list below the illustration. For the MINI Cabrio F57 LCI One, you can identify the Integrated supply module Z11 by locating its position on the schematic, which then links to the official BMW part number 12638661071 for the Vehicle electrical system section.
