Wiring set seat for BMW MINI Countryman F60 LCI One (2023)

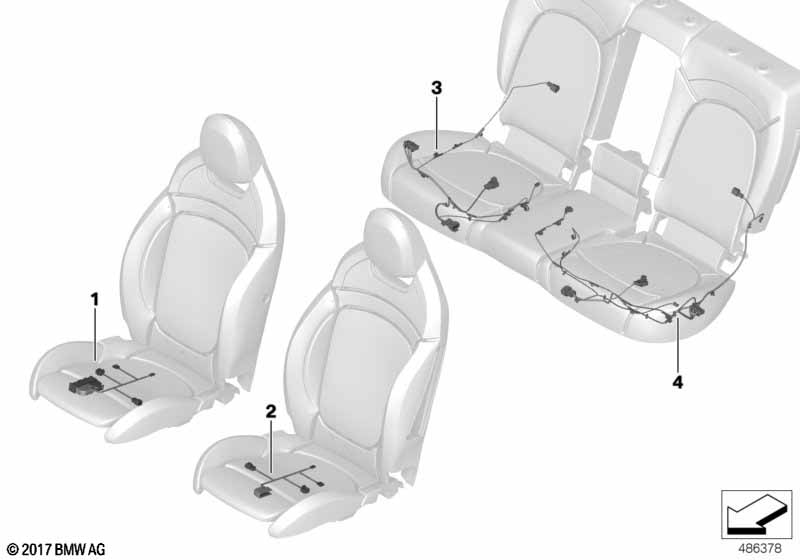

This Wiring set seat technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory and MINI Excitement Package |
S459A=Yes S4V9A=No |
|||||||||
| 01 | Wiring drivers side | 1 | 61126809584 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and MINI Excitement Package |
S459A=Yes S4V9A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 61126809584 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat heating driver/passenger and MINI Excitement Package |
S459A=No S494A=Yes S4V9A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 61126809570 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat heating driver/passenger and MINI Excitement Package |
S459A=Yes S494A=Yes S4V9A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 61126809614 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat heating driver/passenger and MINI Excitement Package |
S459A=Yes S494A=No S4V9A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 61126809614 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat heating driver/passenger and MINI Excitement Package |
S459A=No S494A=Yes S4V9A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 61126809593 | Shop at ECS Tuning | ||||||
| 03 | Wiring harness for 2nd seat row | 40% | 1 | 61126812220 | Shop at ECS Tuning | |||||
| 04 | Wiring harness for 2nd seat row | 60% | 1 | 61126812224 | Shop at ECS Tuning | |||||
