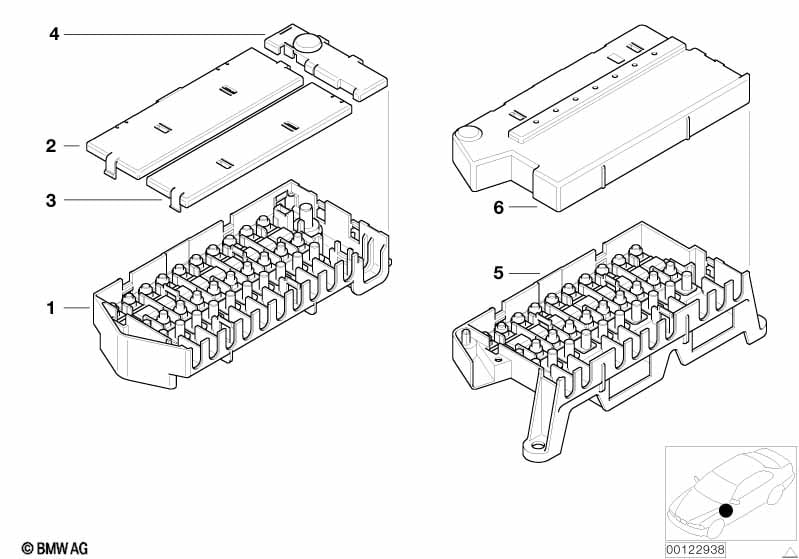

Single components for fuse housing for BMW 5 Series E39 528i (2000)
This Single components for fuse housing technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuse housing 10-fold | 1 | 61108380276 | $68.50 | Shop at ECS Tuning | |||||
| 02 | Cover, fuse box | SERVICE | 1 | 61138382459 | $3.53 | Shop at ECS Tuning | ||||
| 03 | Cover, fuse box | 1 | 61138380690 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cover, fuse box | SERVICE | 1 | 61138382461 | $3.05 | Shop at ECS Tuning | ||||
| 05 | Fuse housing 8-fold | 1 | 61138387544 | $68.50 | Shop at ECS Tuning | |||||
| 06 | Cover, fuse box | SERVICE | 1 | 61138387553 | $7.58 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
