Repair cable, airbag for BMW 5 Series E39 525i (2003)

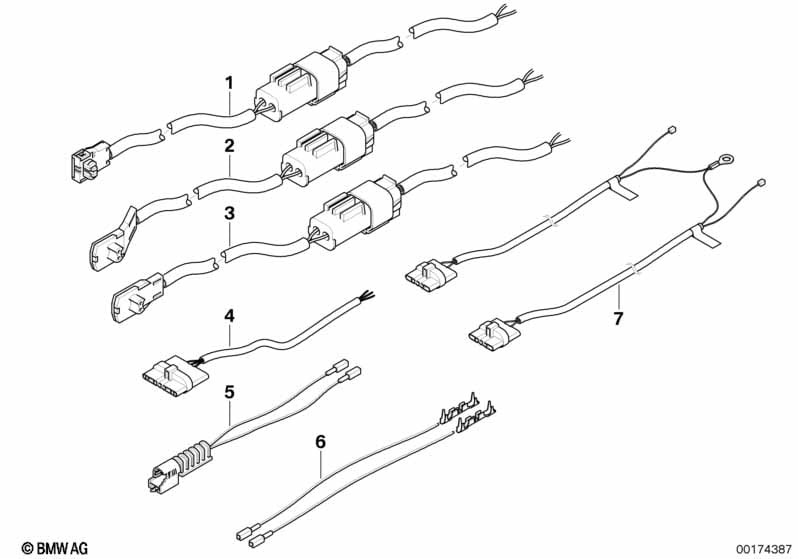

This Repair cable, airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rep. wire seat belt tensioner/seat plug | 2 | 09/1998 | 61129118095 | $50.93 | Shop at ECS Tuning | ||||
| 04 | Rep.cable, sensor, lateral airbag | 2 | 61129256933 | Shop at ECS Tuning | ||||||
| 05 | Rep.cable f column A, B and side airbag | 4 | 61129118137 | $22.15 | Shop at ECS Tuning | |||||
| 06 | Rep.cable f column A, B and side airbag | 4 | 61129118138 | $22.15 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Repair cable, airbag?
- This technical diagram illustrates the Repair cable, airbag within the Vehicle electrical system group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Rep. wire seat belt tensioner/seat plug (Part #61129118095).
- Which models use the hardware listed in this Repair cable, airbag?
- The hardware and components featured in the Repair cable, airbag are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Rep. wire seat belt tensioner/seat plug (61129118095) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Repair cable, airbag assembly?
- Each item in the Repair cable, airbag corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Rep. wire seat belt tensioner/seat plug by locating its position on the schematic, which then links to the official BMW part number 61129118095 for the Vehicle electrical system section.
