Various parts, wiring harness repair for BMW 5 Series E39 525i (2003)

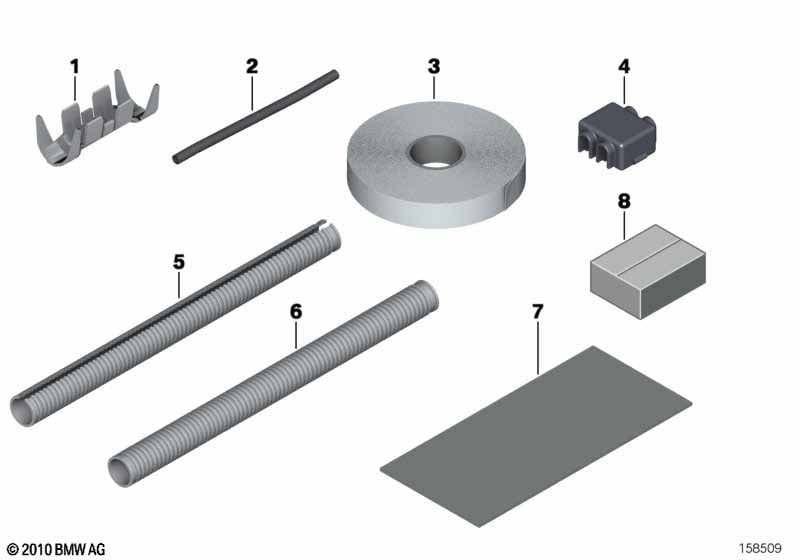

This Various parts, wiring harness repair technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable connector | 4-6 MM² | X | 61136931481 | $5.03 | Shop at ECS Tuning | ||||
| 01 | Cable connector | 0.2-0.5 MM² | X | 61138353746 | $0.77 | Shop at ECS Tuning | ||||
| 01 | Cable connector | 1.0-0.75 MM² | X | 61138353747 | $0.77 | Shop at ECS Tuning | ||||
| 01 | Cable connector | 1.5-2.5 MM² | X | 61138353748 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Shrinking hose | 100MM | X | 61130029658 | $9.02 | Shop at ECS Tuning | ||||
| 02 | Shrinking hose | 6X45MM | X | 61135A4F528 | Shop at ECS Tuning | |||||
| 03 | Polyester-glass mat wrap | B=19MM/L=7,5M | X | 12/2003 | 61136920760 | $6.97 | Shop at ECS Tuning | |||
| 03 | Wrapping tape wiring harness | B= 19MM L=7,5M | X | 61135B70D27 | NoS | Shop at ECS Tuning | ||||
| 03 | Insulating tape soft PVC | X | 61131380991 | $0.63 | Shop at ECS Tuning | |||||
| 03 | Polyester velours wrap | B=19MM/L=15M | X | 61132359177 | Shop at ECS Tuning | |||||
| 03 | Fabric-Tape | B=17MM | X | 61136933055 | Shop at ECS Tuning | |||||
| 03 | Wrapping tape, wiring harness 9 mm wide | X | 61138357847 | Shop at ECS Tuning | ||||||
| 04 | Adapter, 2-pin | X | 61138364566 | $1.25 | Shop at ECS Tuning | |||||
| 04 | Adapter, 5-pin | X | 61138364568 | $5.00 | Shop at ECS Tuning | |||||
| 05 | Corrugated tubing, slotted | Ø 8,5MM | X | 61136933301 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Corrugated tubing, slotted | Ø 17MM | X | 61136933305 | $2.50 | Shop at ECS Tuning | ||||
| 06 | Corrugated metal tube | Ø 4,5MM | X | 12517508831 | $3.52 | Shop at ECS Tuning | ||||
| 07 | Set felt strip self-adhesive | X | 51452353024 | Shop at ECS Tuning | ||||||
| 07 | Protective strip with fastener | 160X80MM | X | 61136908710 | $1.72 | Shop at ECS Tuning | ||||
| 08 | Set of sealing tapes for wiring grommet | 40STK.X 5MM | X | 61126929313 | $30.17 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
